AV464 Series

Catalog

MICROSWITCH, LEFT ANGLE TERMINAL, AV4 SERIES, SPDT, SIMULATED ROLLER LEVER, THROUGH HOLE, 500 MA ROHS COMPLIANT: YES

Part	Features	Mounting Type	Switch Function	Operating Position	Operating Position	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Current Rating (Amps)	Operating Force	Circuit	Termination Style	Voltage Rating - DC	Actuator Type	Overtravel [custom]	Overtravel [custom]	Differential Travel	Differential Travel	Mechanical Life	Pretravel	Pretravel

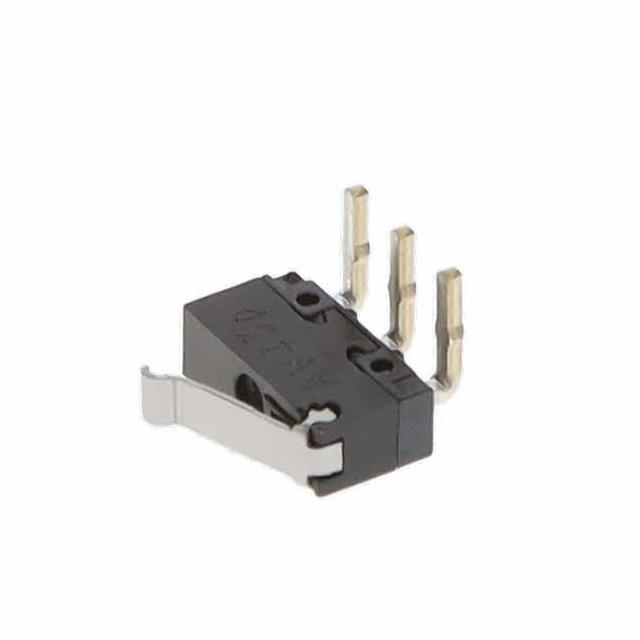

Panasonic Electronic Components AV4644	Actuator Mounted Left Side	Right Angle Through Hole	On-Mom	6.1 mm	0.24 in	-25 °C	80 °C	20000 Steps	500 mA	29 gf	SPDT	PC Pin	30 V	Lever Simulated Roller	0.011 "	0.3 mm	0.7 mm	0.027 in	300000 Cycles	2.2 mm	0.087 in
Panasonic Electronic Components AV464461		Right Angle Through Hole	On-Mom	6.1 mm	0.24 in	-25 °C	80 °C	200000 Cycles	100 mA	29 gf	SPDT	PC Pin	30 V	Lever Simulated Roller	0.011 "	0.3 mm	0.7 mm	0.027 in	300000 Cycles	2.2 mm	0.087 in
