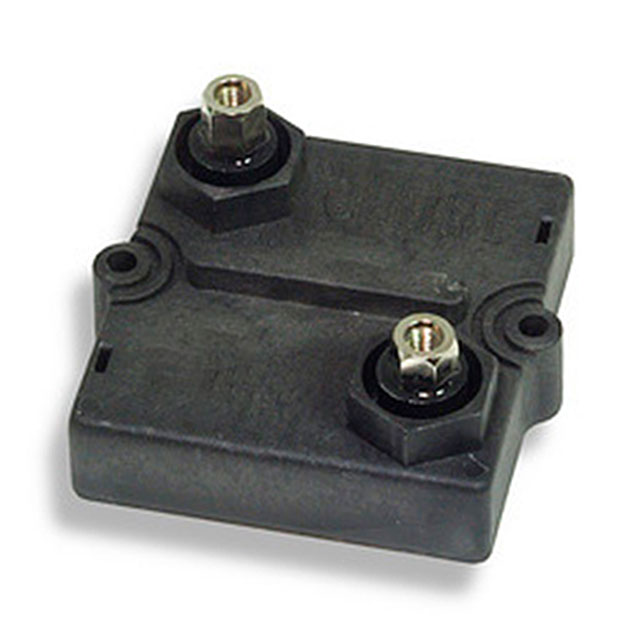

TAP2000 Series
Manufacturer: Ohmite
Beta
⌘K
PLANAR RESISTORS - CHASSIS MOUNT 0.5 OHM 10% 2000W
| Part | Resistance | Features | Lead Style | Coating, Housing Type | Composition | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Temperature Coefficient | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 500 mOhms | Non-Inductive | M5 Threaded | Epoxy Coated | Thick Film | 57 mm | 2.362 in | 60 mm | 2.244 " | 2 kW | 150 ppm/°C | 32.5 mm | 1.28 in | Flanges | 155 C | -55 C | 10 % |
Ohmite | 10 Ohms | Non-Inductive | M5 Threaded | Epoxy Coated | Thick Film | 57 mm | 2.362 in | 60 mm | 2.244 " | 2 kW | 150 ppm/°C | 32.5 mm | 1.28 in | Flanges | 155 C | -55 C | 10 % |
