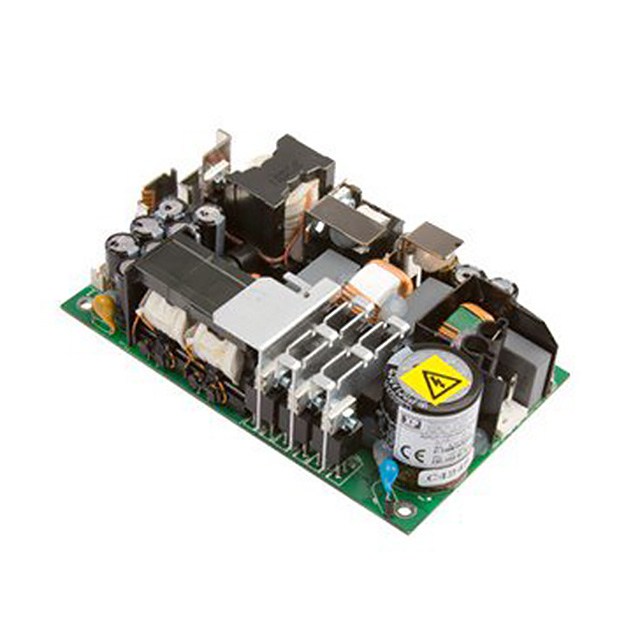

CHD250 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 12V 250W
| Part | Minimum Load Required | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Approval Agency | Voltage - Output 1 | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Number of Outputs | Type | Mounting Type | Standard Number | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 4000 V | 70 °C | -20 °C | 250 W | CB CE TUV UL | 12 V | 20.8 A | 80 VAC | 264 VAC | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 94 % | 1 | Open Frame | Chassis Mount | 62368-1 | ITE (Commercial) Medical | |
XP Power | 4000 V | 70 °C | -20 °C | 250 W | CB CE TUV UL | 48 V | 5.2 A | 80 VAC | 264 VAC | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 94 % | 1 | Open Frame | Chassis Mount | 62368-1 | ITE (Commercial) Medical | |
XP Power | 4000 V | 70 °C | -20 °C | 250 W | CB CE TUV UL | 24 V | 10.4 A | 80 VAC | 264 VAC | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 94 % | 1 | Open Frame | Chassis Mount | 62368-1 | ITE (Commercial) Medical | |
XP Power | 4000 V | 70 °C | -20 °C | 251 W | CB CE TUV UL | 15 V | 16.7 A | 80 VAC | 264 VAC | Adjustable Output PFC Remote On/Off Standby Output Universal Input | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 94 % | 1 | Open Frame | Chassis Mount | 62368-1 | ITE (Commercial) Medical |
