222PMV Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Switch Travel	Mechanical Life	Actuator Type	Contact Rating @ Voltage	Circuit	Operating Force	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]	Mounting Type	Actuator Orientation	Illumination	Switch Function	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Ingress Protection

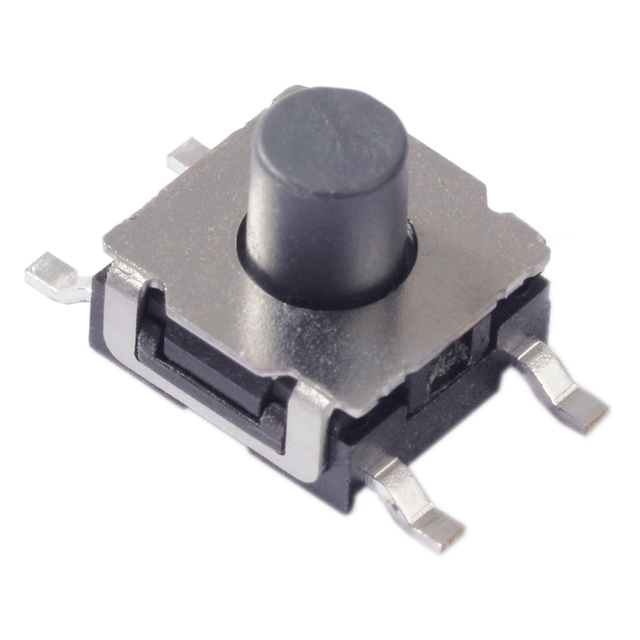

CTS Electrocomponents 222PMVAAR	0.25 mm	100000 Cycles	Standard	0.05 A 32 VDC	SPST-NO	0.2 kgf	6.2 mm	6.2 mm	5.6 mm	Surface Mount	Top Actuated	Non-Illuminated	Off-Mom	Gull Wing	85 °C	-40 C	Tactile Feedback	IP67 - Dust Tight Waterproof

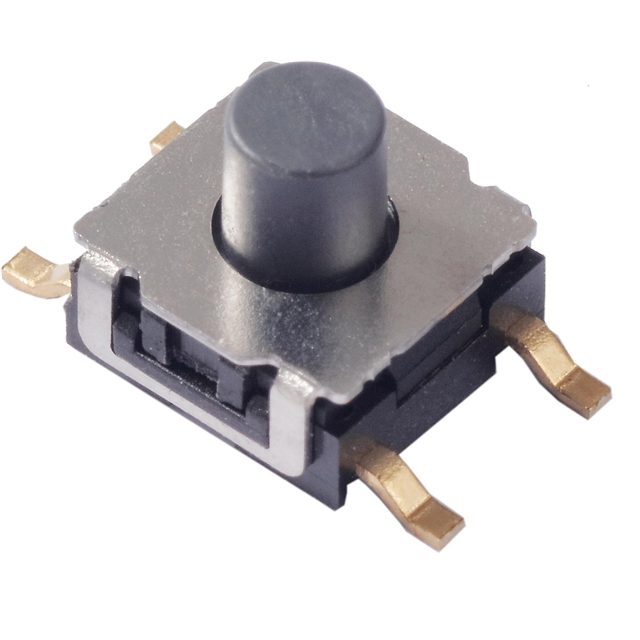

CTS Electrocomponents 222PMVAARD	0.25 mm	100000 Cycles	Standard	0.01 A 32 VDC	SPST-NO	0.2 kgf	6.2 mm	6.2 mm	5.6 mm	Surface Mount	Top Actuated	Non-Illuminated	Off-Mom	Gull Wing	125 °C	-40 C	Tactile Feedback	IP67 - Dust Tight Waterproof
