PAAM15 Series

Encapsulated Power Supply 12V 15 Watt

Manufacturer: TT Electronics/BI

Catalog

Encapsulated Power Supply 12V 15 Watt

Catalog

Encapsulated Power Supply 12V 15 Watt

Part	Efficiency	Type	Mounting Type	Applications	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Package / Case	Current - Output (Max) [Max]	Standard Number	Number of Outputs	Line Regulation	Load Regulation	Current - Output 1	Voltage - Isolation

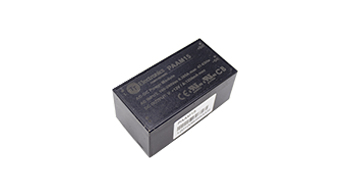

TT Electronics/BI PAAM15-12	84 %	Enclosed	Through Hole	ITE (Commercial) Medical	CB CE cURus	90 VAC 120 VDC	264 VAC 370 VDC	12 V	80 ¯C	-40 °C	15 W	23.5 mm	0.93 "	1.08 in	27.5 mm	52.5 mm	2.07 in	Universal Input	4-DIP Module	1.25 A	60601-1 60950-1	1
TT Electronics/BI PAAM15-10	79 %	Enclosed	Through Hole	ITE (Commercial) Medical	CB CE cURus	90 VAC 120 VDC	264 VAC 370 VDC	5 V	80 ¯C	-40 °C	15 W	23.5 mm	0.93 "	1.08 in	27.5 mm	52.5 mm	2.07 in	Universal Input	4-DIP Module	3 A	60601-1 60950-1	1
TT Electronics/BI PAAM15-14	85 %	Enclosed	Through Hole	ITE (Commercial) Medical	CB CE cURus	90 VAC 120 VDC	264 VAC 370 VDC	24 V	80 ¯C	-40 °C	15 W	23.5 mm	0.93 "	1.08 in	27.5 mm	52.5 mm	2.07 in	Universal Input	4-DIP Module	625 mA	60601-1 60950-1	1	0.5 %	±1%
TT Electronics/BI PAAM15-12C	84 %	Enclosed	Chassis Mount	ITE (Commercial) Medical	CB CE cURus	90 VAC 120 VDC	264 VAC 370 VDC	12 V	80 ¯C	-40 °C	15 W	96 mm	3.78 in	1.14 "	29 mm	53.8 mm	2.12 in	DC Input Capable Universal Input			60601-1 60950-1	1			1.25 A	4000 V
TT Electronics/BI PAAM15-13C	84 %	Enclosed	Chassis Mount	ITE (Commercial) Medical	CB CE cURus	90 VAC 120 VDC	264 VAC 370 VDC	15 V	80 ¯C	-40 °C	15 W	29 mm	1.14 in	2.12 "	53.8 mm	96 mm	3.78 in	DC Input Capable Universal Input			60601-1 60950-1	1			1 A	4000 V
TT Electronics/BI PAAM15-10C	79 %	Enclosed	Chassis Mount	ITE (Commercial) Medical	CB CE cURus	90 VAC 120 VDC	264 VAC 370 VDC	5 V	80 ¯C	-40 °C	15 W	96 mm	3.78 in	1.14 "	29 mm	53.8 mm	2.12 in	DC Input Capable Universal Input			60601-1 60950-1	1			3 A	4000 V
TT Electronics/BI PAAM15-14C	85 %	Enclosed	Chassis Mount	ITE (Commercial) Medical	CB CE cURus	90 VAC 120 VDC	264 VAC 370 VDC	24 V	80 ¯C	-40 °C	15 W	96 mm	3.78 in	1.14 "	29 mm	53.8 mm	2.12 in	DC Input Capable Universal Input			60601-1 60950-1	1			625 mA	4000 V
TT Electronics/BI PAAM15-13	84 %	Enclosed	Through Hole	ITE (Commercial) Medical	CB CE cURus	90 VAC 120 VDC	264 VAC 370 VDC	15 V	80 ¯C	-40 °C	15 W	23.5 mm	0.93 "	1.08 in	27.5 mm	52.5 mm	2.07 in	Universal Input	4-DIP Module	1 A	60601-1 60950-1	1
