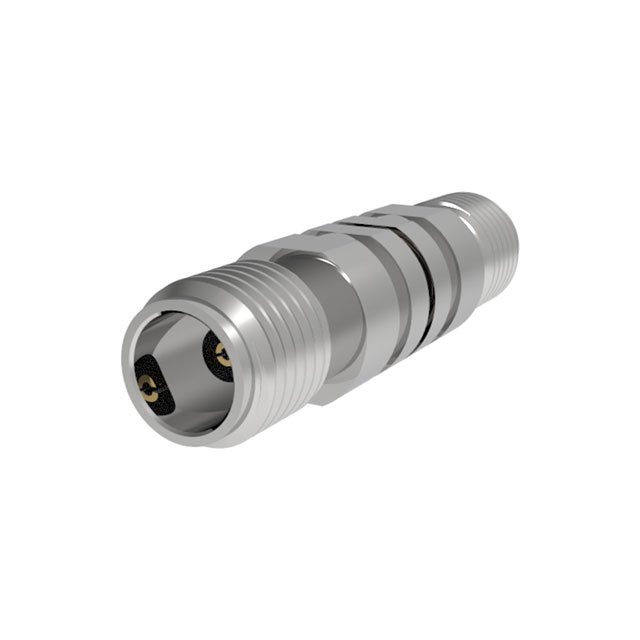

TMA-4FS Series
Manufacturer: Amphenol CDI
Beta
⌘K
MW ADAPTER 2.4(F) TO 3.5(F)
| Part | Mounting Type | Adapter Series [Min] | Adapter Series [Max] | Impedance | Convert From (Adapter End) | Convert From (Adapter End) | Adapter Type | Style | Center Gender | Convert To (Adapter End) | Conversion Type | Frequency - Max [Max] | Center Contact Material | Convert To (Adapter End) | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 3.5 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Jack to Jack | Straight | Female to Female | 3.5mm Jack Female Socket | Between Series | 26.5 GHz | |||
 Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 2.92 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Jack to Jack | Straight | Female to Female | Jack Female Socket | Between Series | 40 GHz | Beryllium Copper | 2.92 mm | Stainless Steel |
 Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 3.5 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Plug to Jack | Straight | 3.5mm Plug Male Pin | Between Series | 26.5 GHz | Beryllium Copper | Stainless Steel | ||
Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 3.5 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Plug to Jack | Straight | 3.5mm Plug Male Pin | Between Series | 26.5 GHz | ||||
Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 2.92 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Jack to Jack | Straight | Female to Female | Jack Female Socket | Between Series | 40 GHz | 2.92 mm | ||
Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 2.4 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Jack to Jack | Straight | Female to Female | (APC-2.4 OS-50) Jack Female Socket | Same Series | 50 GHz | Beryllium Copper | 2.4 mm | Stainless Steel |
Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 2.92 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Plug to Jack | Straight | 2.92mm (OS-2.9) Plug Male Pin | Between Series | 40 GHz | ||||
Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 3.5 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Jack to Jack | Straight | Female to Female | 3.5mm Jack Female Socket | Between Series | 26.5 GHz | Beryllium Copper | Stainless Steel | |
Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 2.4 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Jack to Jack | Straight | Female to Female | (APC-2.4 OS-50) Jack Female Socket | Same Series | 50 GHz | 2.4 mm | ||
Amphenol CDI | Free Hanging (In-Line) | 2.4 mm | 2.92 mm | 50 Ohms | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Plug to Jack | Straight | 2.92mm (OS-2.9) Plug Male Pin | Between Series | 40 GHz | Beryllium Copper | Stainless Steel |
