2002-1541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

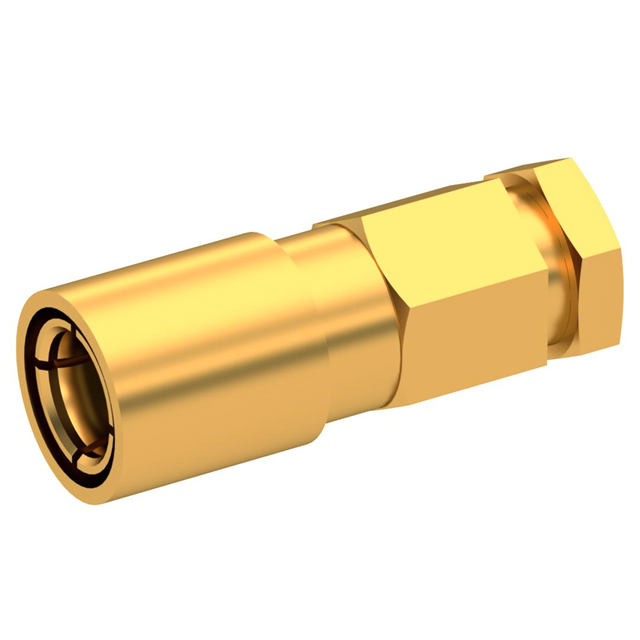

SMB / STRAIGHT PLUG FEMALE SOLDE
| Part | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Insertion Loss | Dielectric Material | Housing Color | Contact Termination | Impedance | Frequency - Max [Max] | Fastening Type | Shield Termination | Mounting Type | Connector Style | Center Contact Material | Number of Ports | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 500 | -65 ░C | 165 °C | Gold | Brass | 0.3 dB | Polytetrafluoroethylene (PTFE) | Gold | Solder | 50 Ohms | 4 GHz | Snap-On | Clamp | Free Hanging (In-Line) | SMB | Beryllium Copper | 1 | Female Socket Plug |
