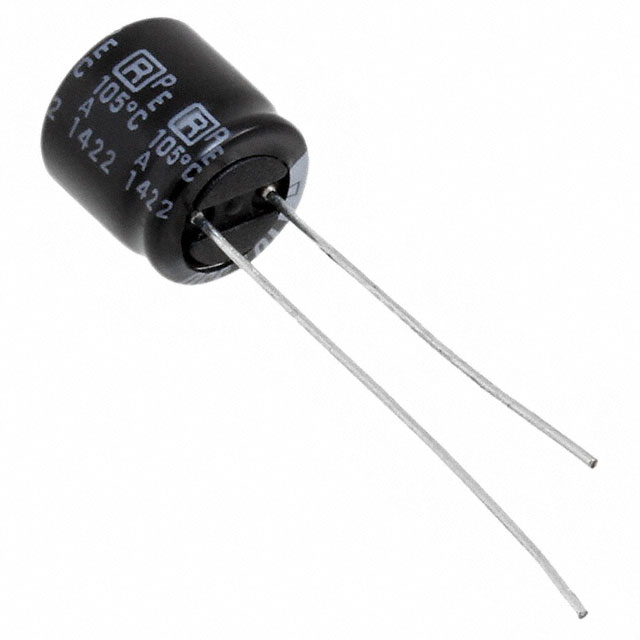

ML Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LONG LIFE ELECTROLYTIC CAPACITORS

Part	Capacitance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Ripple Current @ Low Frequency	Mounting Type	Lead Spacing	Lead Spacing	Applications	Lifetime @ Temp.	Package / Case	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Rubycon 16ML470MEFC10X9	470 µF	Polar	0.394 in	10 mm	-40 C	105 ░C	16 V	11 mm	0.433 in	20 %	460 mA	Through Hole	0.197 "	5 mm	General Purpose	5000 Hrs	Can Radial

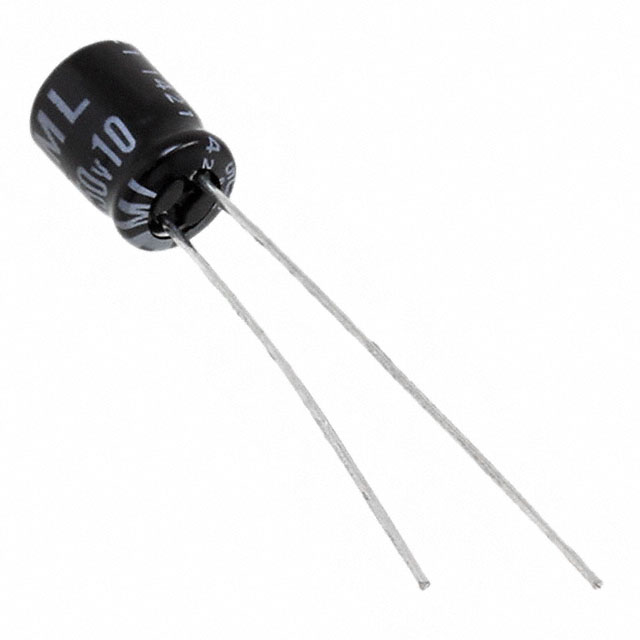

Rubycon 50ML10MEFC5X7	10 µF	Polar	0.197 in	5 mm	-40 C	105 ░C	50 VDC			20 %	30 mA	Through Hole	0.079 in	2 mm	General Purpose	5000 Hrs	Can Radial	45 mA	8 mm	0.315 in
Rubycon 6.3ML560MEFC8X9	560 µF	Polar	0.315 in	8 mm	-40 C	105 ░C	6.3 VDC	11 mm	0.433 in	20 %	230 mA	Through Hole	0.138 in	3.5 mm	General Purpose	5000 Hrs	Can Radial	345 mA
Rubycon 6.3ML220MEFC8X5	220 µF	Polar	0.315 in	8 mm	-40 C	105 ░C	6.3 VDC			20 %	125 mA	Through Hole	0.098 in	2.5 mm	General Purpose	3000 Hrs	Can Radial	150 mA	0.256 in		6.5 mm
Rubycon 16ML150MEFC8X7	150 µF	Polar	0.315 in	8 mm	-40 C	105 ░C	16 V			20 %	125 mA	Through Hole	0.138 in	3.5 mm	General Purpose	5000 Hrs	Can Radial	150 mA	8 mm	0.315 in
