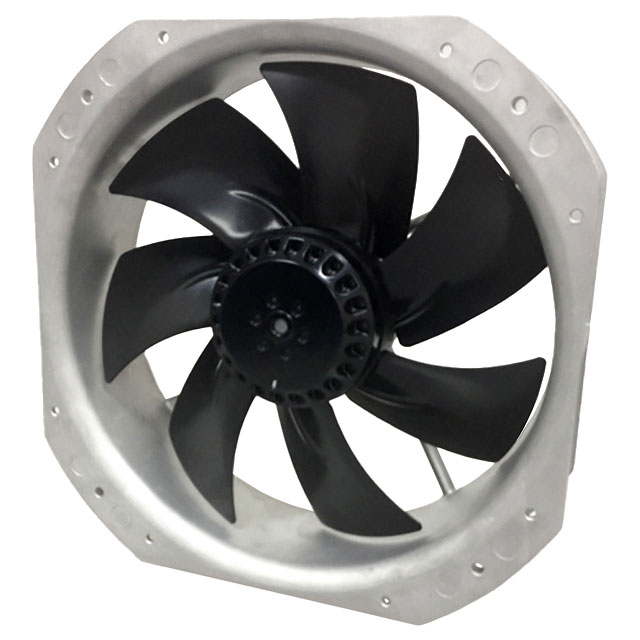

OA280AN Series
Manufacturer: ORION FANS
Beta
⌘K
AC FANS AXIAL FAN, 280X280X89MM, 115VAC, 1090CFM, 112W, 68DBA, 2550RPM, BALL, WIRE, IP55
| Part | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Material - Blade | Ingress Protection | Features | Fan Type | RPM | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Width [y] | Power (Watts) | Bearing Type | Weight [custom] | Weight [custom] | Static Pressure | Static Pressure | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 40000 Hrs | 1.5 A | 100 VAC | 125 VAC | Aluminum | Metal | IP55 - Dust Protected Water Resistant | Capacitor Thermal Overload Protector (TOP) | Tubeaxial | 2700 RPM | 1130 CFM | 31.64 m³/min | 80 °C | -40 C | 115 VAC | cURus TUV | 280 mm | 280 mm | 80 mm | 148 W | Ball | 2.8 kg | 6.2 lbs | 194.3 Pa | 0.78 in H2O | Terminal Block |
ORION FANS | 40000 Hrs | 0.82 A | Aluminum | Metal | IP55 - Dust Protected Water Resistant | Capacitor Thermal Overload Protector (TOP) | Tubeaxial | 2700 RPM | 1130 CFM | 31.64 m³/min | 80 °C | -40 C | 230 VAC | cURus TUV | 280 mm | 280 mm | 80 mm | 158 W | Ball | 2.8 kg | 6.2 lbs | 194.3 Pa | 0.78 in H2O | Terminal Block |
