SK1/2/3/4/5/8/L Series

Catalog

SCHOTTKY DIODES & RECTIFIERS SCHOTTKY, D2PAK, 40V, 20A

Part	Speed	Package / Case	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Grade	Qualification	Voltage - Forward (Vf) (Max) @ If [Max]
Diotec Semiconductor SK2040YD2R	200 mA 500 ns	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	580 mV	40 V	Surface Mount	Schottky	200 µA	TO-263AB (D2PAK)	150 °C	-50 °C

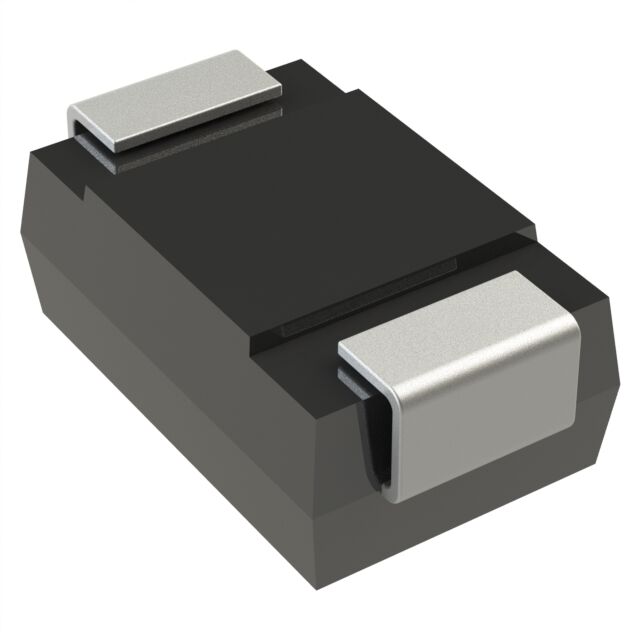

Diotec Semiconductor SK34SMB-AQ	200 mA 500 ns	DO-214AA SMB	550 mV	40 V	Surface Mount	Schottky	100 µA	DO-214AA (SMB)	150 °C	-50 °C	3 A	Automotive	AEC-Q101
Diotec Semiconductor SK210	200 mA 500 ns	DO-214AA SMB	850 mV	100 V	Surface Mount	Schottky	500 µA	DO-214AA (SMB)	150 °C	-50 °C	2 A
Diotec Semiconductor SK36-AQ	200 mA 500 ns	DO-214AB SMC		60 V	Surface Mount	Schottky	30 µA	DO-214AB (SMC)	150 °C	-50 °C	3 A	Automotive	AEC-Q101	750 mV
Diotec Semiconductor SK36SMA-3G	200 mA 500 ns	DO-214AC SMA	550 mV	60 V	Surface Mount	Schottky	50 çA	DO-214AC (SMA)	150 °C	-50 °C	3 A
Diotec Semiconductor SK86-3G	200 mA 500 ns	DO-214AB SMC	550 mV	60 V	Surface Mount	Schottky	50 çA	DO-214AB (SMC)	150 °C	-50 °C	8 A
Diotec Semiconductor SK16-AQ	200 mA 500 ns	DO-214AC SMA		60 V	Surface Mount	Schottky	500 µA	DO-214AC (SMA)	150 °C	-50 °C	1 A	Automotive	AEC-Q101	700 mV
Diotec Semiconductor SK1840D2R	200 mA 500 ns	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB		40 V	Surface Mount	Schottky	500 µA	TO-263AB (D2PAK)	150 °C	-50 °C	18 A			580 mV
Diotec Semiconductor SKL120-AQ	200 mA 500 ns	SOD-123F	840 mV	200 V	Surface Mount	Schottky	200 µA	SOD-123FL	150 °C	-50 °C	1 A	Automotive	AEC-Q101
Diotec Semiconductor SK34SMA-3G	200 mA 500 ns	DO-214AC SMA	500 mV	40 V	Surface Mount	Schottky	50 µA	DO-214AC (SMA)	150 °C	-50 °C	3 A
