GICV Series

Catalog

PLUGGABLE TERMINAL BLOCKS 4 POS 7.62MM PITCH THRU HOLE INVERT HDR

Part	Header Orientation	Mounting Type	Features	Voltage - UL	Color	Contact Mating Finish	Type	Number of Positions	Pitch	Pitch	Termination Style	Current - IEC	Current - UL	Number of Levels	Voltage - IEC	Positions Per Level	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Housing Material	Positions Per Level [custom]
Phoenix Contact 1859111	Vertical	Through Hole	Mating and Mounting Flange Retention Latches	300 V	Green	Tin	Header Female Sockets	4	0.3 in	7.62 mm	Solder	12 A	10 A	1	1 kV	4
Phoenix Contact 1756537	Vertical	Through Hole	Retention Latches	250 V	Green	Tin	Header Female Sockets	7	0.3 in	7.62 mm	Solder	16 A	16 A	1	1 kV		19 mm	0.748 in	0.142 in	3.6 mm	UL94 V-0	Polyamide (PA) Nylon	7
Phoenix Contact 1756566	Vertical	Through Hole	Retention Latches	250 V	Green	Tin	Header Female Sockets	10	0.3 in	7.62 mm	Solder	16 A	16 A	1	1 kV	10

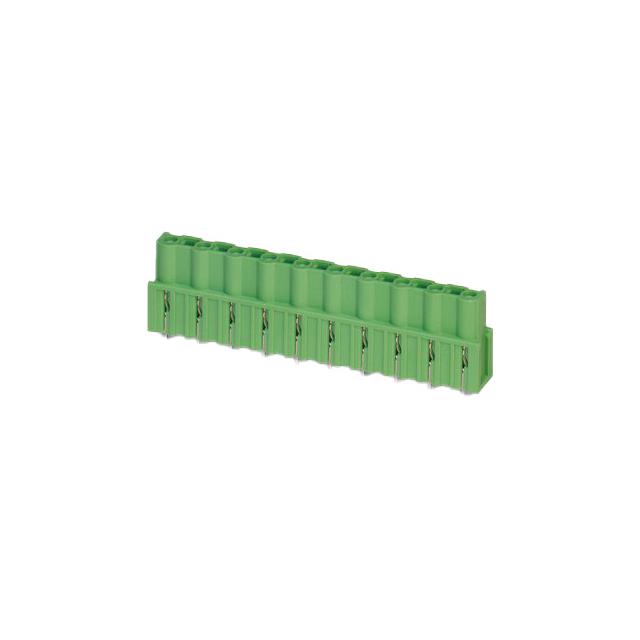

Phoenix Contact 1828977	Vertical	Through Hole	Retention Latches	300 V	Green	Tin	Header Female Sockets	8	0.3 in	7.62 mm	Solder	12 A	10 A	1	1 kV	8	19 mm	0.748 in	0.142 in	3.6 mm	UL94 V-0	Polyamide (PA) Nylon
Phoenix Contact 1828993	Vertical	Through Hole	Retention Latches	300 V	Green	Tin	Header Female Sockets	10	0.3 in	7.62 mm	Solder	12 A	10 A	1	1 kV	10
Phoenix Contact 1756579	Vertical	Through Hole	Retention Latches	250 V	Green	Tin	Header Female Sockets	11	0.3 in	7.62 mm	Solder	16 A	16 A	1	1 kV	11	19 mm	0.748 in	0.142 in	3.6 mm	UL94 V-0	Polyamide (PA) Nylon
