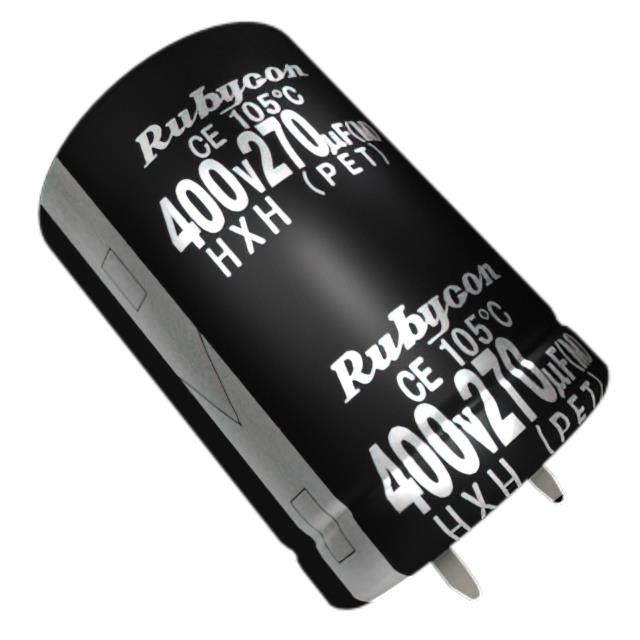

HXH Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 400VDC 220UF 20% AEC-Q200

Part	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Package / Case	Lifetime @ Temp.	Voltage - Rated	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Capacitance	Ratings	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension
Rubycon 400HXH220MEPASN20X45	0.394 in	10 mm	1.85 in	47 mm	Automotive	Radial Can - Snap-In	5000 Hrs	400 V	Through Hole	20 mm	0.787 "	Polar	-40 C	105 ░C	20 %	220 µF	AEC-Q200	1.988 A	1.42 A
Rubycon 420HXH330MEPASN22X50	0.394 in	10 mm	2.047 in	52 mm	Automotive	Radial Can - Snap-In	5000 Hrs	420 V	Through Hole	22 mm	0.866 "	Polar	-40 C	105 ░C	20 %	330 µF	AEC-Q200	2.492 A	1.78 A
Rubycon 400HXH470MEPASN25X50	0.394 in	10 mm	2.047 in	52 mm	Automotive	Radial Can - Snap-In	5000 Hrs	400 V	Through Hole	25 mm	0.984 "	Polar	-40 C	105 ░C	20 %	470 µF	AEC-Q200	2.954 A	2.11 A
Rubycon 450HXH220MEPASN20X50	0.394 in	10 mm	2.047 in	52 mm	Automotive	Radial Can - Snap-In	5000 Hrs	450 V	Through Hole	20 mm	0.787 "	Polar	-40 C	105 ░C	20 %	220 µF	AEC-Q200	2.044 A	1.46 A
Rubycon 420HXH150MEPASN25X25	0.394 in	10 mm	1.063 in	27 mm	Automotive	Radial Can - Snap-In	5000 Hrs	420 V	Through Hole	25 mm	0.984 "	Polar	-40 C	105 ░C	20 %	150 µF	AEC-Q200	1.484 A	1.06 A
Rubycon 400HXH390MEPASN35X30	0.394 in	10 mm			Automotive	Radial Can - Snap-In	5000 Hrs	400 V	Through Hole	35 mm	1.378 "	Polar	-40 C	105 ░C	20 %	390 µF	AEC-Q200	2.562 A	1.83 A	1.26 in	32 mm
Rubycon 400HXH220MEPASN30X25	0.394 in	10 mm	1.063 in	27 mm	Automotive	Radial Can - Snap-In	5000 Hrs	400 V	Through Hole		1.181 "	Polar	-40 C	105 ░C	20 %	220 µF	AEC-Q200		1.33 A			30 mm
