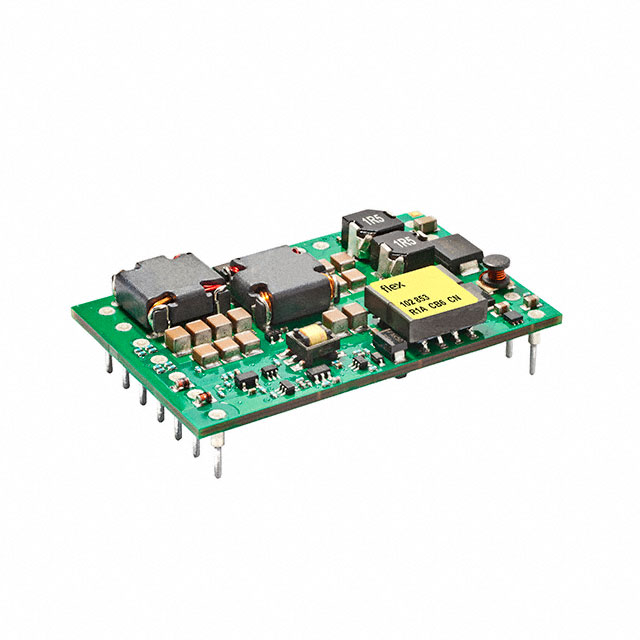

PIM4328 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 3.3V 5V 58W
| Part | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Package / Case | Voltage - Isolation | Voltage - Output 2 | Approval Agency | Applications | Efficiency | Features | Mounting Type | Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 62368-1 | -40 °C | 110 °C | Quarter Brick | 2.28 " | 57.9 mm | 36.8 mm | 0.42 " | 10.7 mm | 1.45 in | 2 | Quarter Brick | 2250 VDC | 5 V | CB CSA IEC TUV UL | ITE (Commercial) | 98.8 % | Adjustable Output PMBus™ | Through Hole | Isolated Module | 3.6 A 12 A | 75 V | 3.3 V | 36 V |
