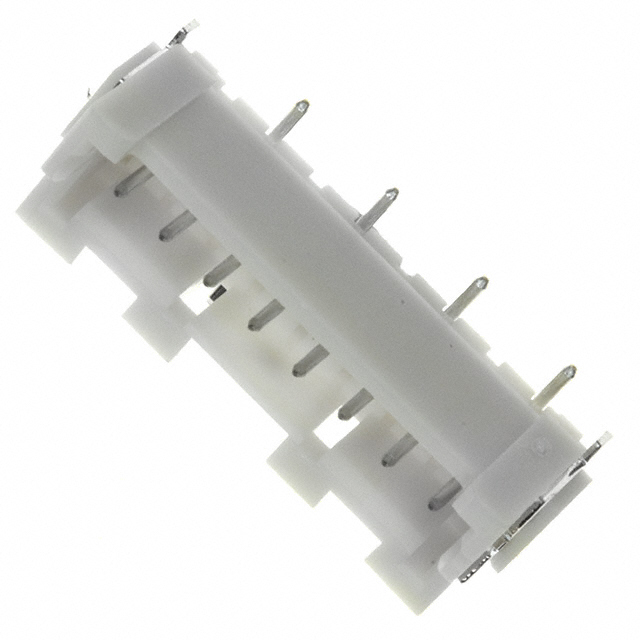

BM08B-XA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD 8POS 2.5MM
| Part | Mated Stacking Heights | Contact Material | Voltage Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Insulation Height | Insulation Height | Insulation Color | Material Flammability Rating | Termination | Style | Insulation Material | Fastening Type | Contact Shape | Connector Type | Contact Type | Shrouding | Features | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Finish - Post | Number of Positions Loaded | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 11.9 mm | Copper Alloy | 250 V | Surface Mount | 85 °C | -25 °C | 3 A | 9.4 mm | 0.37 in | Natural | UL94 V-0 | Solder | Board to Cable/Wire | Nylon Polyamide (PA) | Locking Ramp | Circular | Header | Male Pin | Shrouded - 4 Wall | Solder Retention | 2.5 mm | 0.098 in | 1 | Tin | All | 8 |
