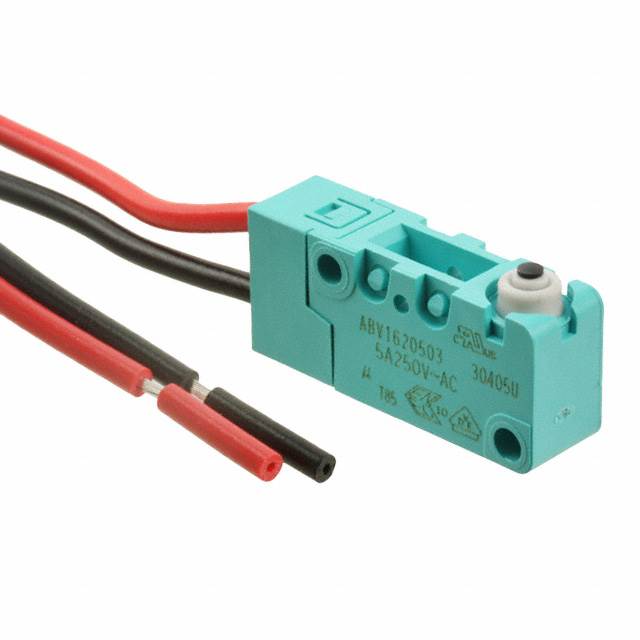

ABV162 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACT SPST-NC 5A 250V

Part	Switch Function	Operating Force	Electrical Life	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Overtravel	Overtravel	Current Rating (Amps)	Mechanical Life	Termination Style	Operating Position	Operating Position	Pretravel	Pretravel	Voltage Rating - AC	Ingress Protection	Differential Travel	Differential Travel	Release Force	Overtravel [custom]	Overtravel [custom]
Panasonic Electronic Components ABV1622503	On-Mom	120 gf	100000 Cycles	Lever Straight	SPST-NC	85 °C	-40 C	Chassis Mount	1.2 mm	0.047 "	5 A	5000000 Cycles	Wire Leads	15.3 mm	0.602 in	0.125 in	3.2 mm	250 V	IP67 - Dust Tight Waterproof	1.2 mm	0.047 in	13 gf
Panasonic Electronic Components ABV1625619	On-Mom	320 gf	100000 Cycles	Lever Roller	SPST-NC	85 °C	-40 C	Chassis Mount			3 A	5000000 Cycles	Wire Leads	20.7 mm	0.815 in	0.063 in	1.6 mm	250 V	IP67 - Dust Tight Waterproof	0.5 mm	0.02 in	60 gf	0.03 "	0.76 mm
Panasonic Electronic Components ABV1622619	On-Mom	180 gf	100000 Cycles	Lever Straight	SPST-NC	85 °C	-40 C	Chassis Mount	1.2 mm	0.047 "	3 A	5000000 Cycles	Wire Leads	15.3 mm	0.602 in	0.125 in	3.2 mm	250 V	IP67 - Dust Tight Waterproof	1.2 mm	0.047 in	20 gf
Panasonic Electronic Components ABV1622413	On-Mom	60 gf	100000 Cycles	Lever Straight	SPST-NC	85 °C	-40 C	Chassis Mount	1.2 mm	0.047 "	1 A	5000000 Cycles	Wire Leads	15.3 mm	0.602 in	0.125 in	3.2 mm	250 V	IP67 - Dust Tight Waterproof	1.2 mm	0.047 in	10 gf
Panasonic Electronic Components ABV1620619	On-Mom	300 gf	100000 Cycles	Round (Pin Plunger)	SPST-NC	85 °C	-40 C	Chassis Mount			3 A	5000000 Cycles	Wire Leads	14.7 mm	0.579 in	0.063 in	1.6 mm	250 V	IP67 - Dust Tight Waterproof	0.4 mm	0.016 in	60 gf	0.03 "	0.76 mm
