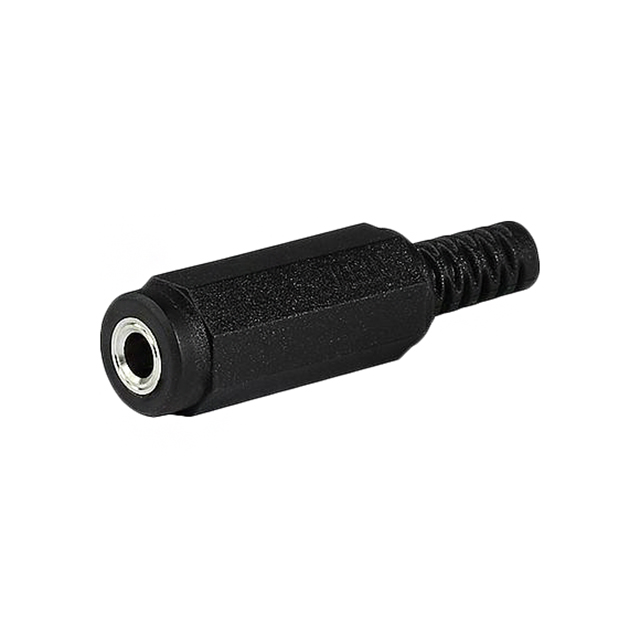

4832.3300 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PHONE CONNECTORS AUDIO LINE SOCKET 3.5MM 3P
| Part | Current Rating (Amps) | Contact Material | Mating Length/Depth | Mating Length/Depth | Cable Opening | Cable Opening | Body Color | Housing Material | Voltage - Rated | Contact Material - Plating | Internal Switch(s) | Gender | Mounting Type | Termination | Connector Type | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Operating Temperature [Min] | Operating Temperature [Max] | Actual Diameter [diameter] | Actual Diameter [diameter] | Shielding | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Signal Lines |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.5 A | Brass | 14 mm | 0.551 in | 0.157 in | 4 mm | Black | Plastic | 30 VAC | Gold | Female | Free Hanging (In-Line) | Solder | Phone Jack | 0.125 in | 3.5 mm | 0.141 in | -20 ░C | 70 °C | 3.5 mm | 0.138 in | Unshielded | 3 | 3 | Stereo (3 Conductor TRS) |
