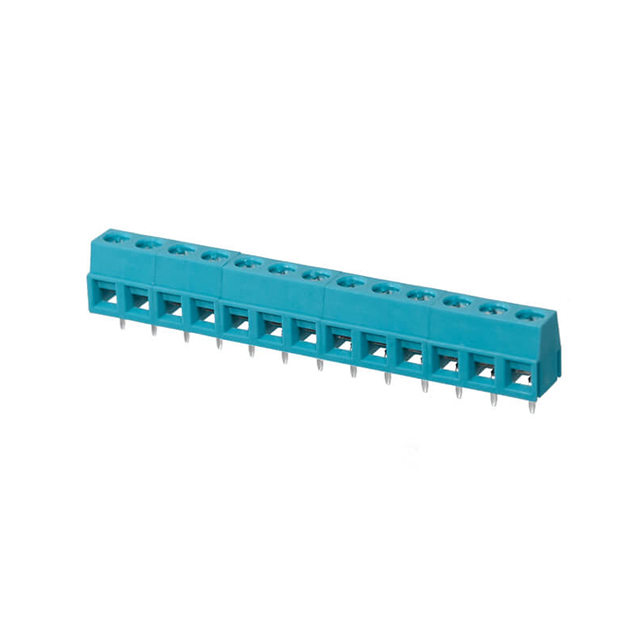

TB006 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREW TYPE, 5.08
| Part | Mating Orientation | Number of Levels | Current | Pitch | Pitch | Wire Gauge [Min] | Wire Gauge [Max] | Wire Termination | Features | Color | Positions Per Level | Voltage | Mounting Type | Clamp Material - Plating [custom] | Clamp Material - Plating [custom] | Screw Thread | Screw Material - Plating | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 21 | 300 VDC | Through Hole | ||||||||||
Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 22 | 300 VDC | Through Hole | Nickel Plated | Copper Alloy | M3 | Steel - Zinc Plated | Copper Alloy - Tin Plated | -40 C | 105 ░C | 4.4 Lb-In | 0.5 Nm | |
 Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 13 | 300 VDC | Through Hole | Nickel Plated | Copper Alloy | M3 | Steel - Zinc Plated | Copper Alloy - Tin Plated | -40 C | 105 ░C | 4.4 Lb-In | 0.5 Nm | |
 Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 300 VDC | Through Hole | 7 | ||||||||||

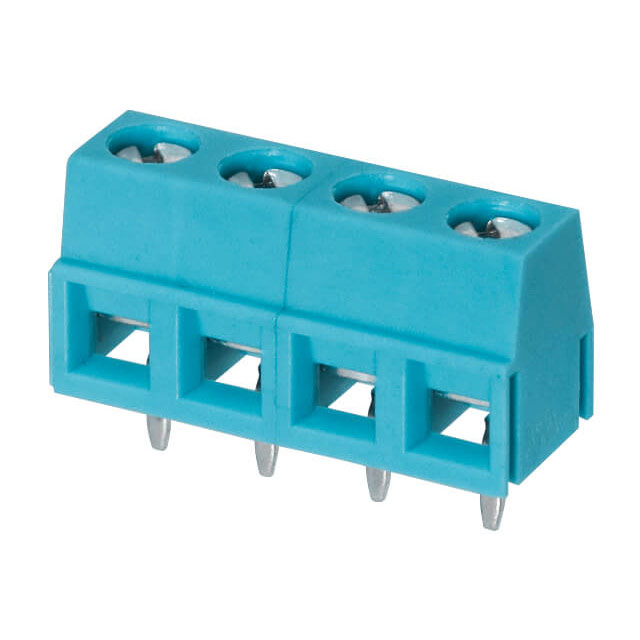

 Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 4 | 300 VDC | Through Hole | Nickel Plated | Copper Alloy | M3 | Steel - Zinc Plated | Copper Alloy - Tin Plated | -40 C | 105 ░C | 4.4 Lb-In | 0.5 Nm | |

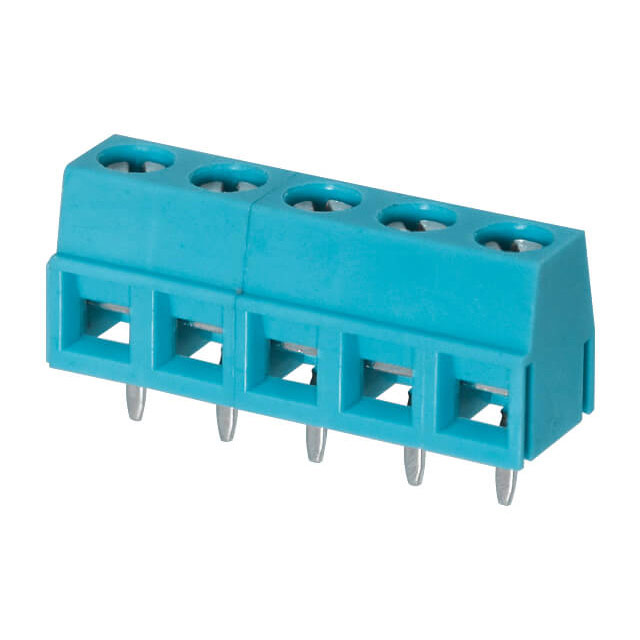

 Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 5 | 300 VDC | Through Hole | Nickel Plated | Copper Alloy | M3 | Steel - Zinc Plated | Copper Alloy - Tin Plated | -40 C | 105 ░C | 4.4 Lb-In | 0.5 Nm | |
Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 22 | 300 VDC | Through Hole | ||||||||||
Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 16 | 300 VDC | Through Hole | Nickel Plated | Copper Alloy | M3 | Steel - Zinc Plated | Copper Alloy - Tin Plated | -40 C | 105 ░C | 4.4 Lb-In | 0.5 Nm | |
Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 16 | 300 VDC | Through Hole | ||||||||||
Same Sky (Formerly CUI Devices) | Horizontal with Board | 1 | 12 A | 5.08 mm | 0.2 in | 14 AWG | 26 AWG | Screw - Rising Cage Clamp | Interlocking (Side) | Blue | 20 | 300 VDC | Through Hole |
