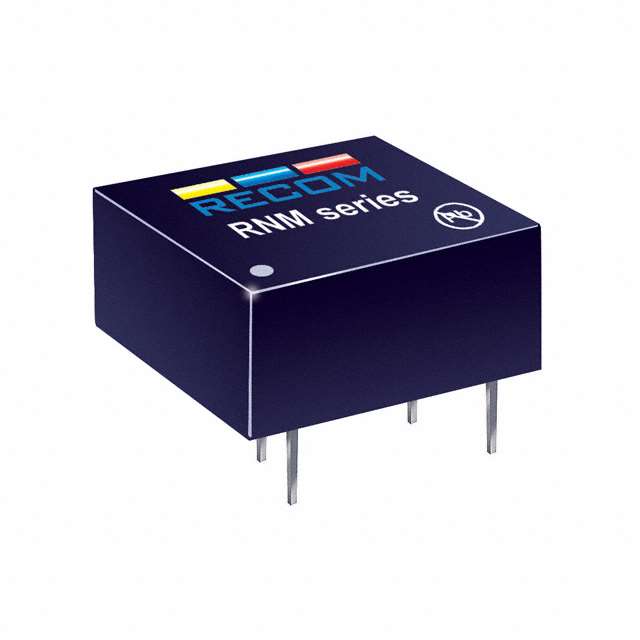

RNM Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 2KV UNREG 12VIN 12VOUT

...

Part	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Voltage - Input (Max) [Max]	Number of Outputs	Type	Mounting Type	Package / Case	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]

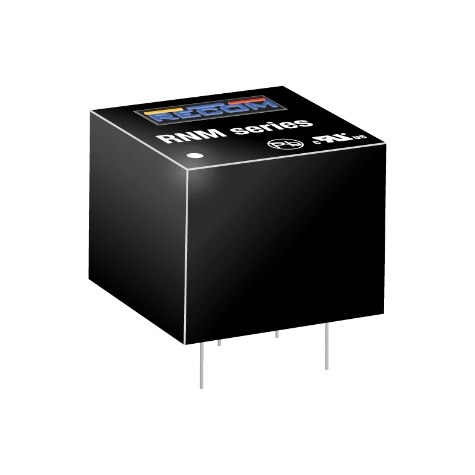

Recom Power RNM-1212S/H	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	78 %	2000 V	83 mA	ITE (Commercial)	13.2 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	12 V	85 °C	-40 C	10.8 V
Recom Power RNM-1512S/P	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	78 %	1000 V	83 mA	ITE (Commercial)	16.5 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	12 V	85 °C	-40 C	13.5 V
Recom Power RNM-053.3S	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	75 %	1000 V	303 mA	ITE (Commercial)	5.5 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	3.3 V	85 °C	-40 C	4.5 V
Recom Power RNM-3.309S/P	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	78 %	1000 V	111 mA	ITE (Commercial)	3.6 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	9 V	85 °C	-40 C	3 V
Recom Power RNM-0509S/HP	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	78 %	2000 V	111 mA	ITE (Commercial)	5.5 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	9 V	85 °C	-40 C	4.5 V
Recom Power RNM-1209S/P	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	78 %	1000 V	111 mA	ITE (Commercial)	13.2 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	9 V	85 °C	-40 C	10.8 V
Recom Power RNM-1205S/P	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	78 %	1000 V	200 mA	ITE (Commercial)	13.2 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	5 V	85 °C	-40 C	10.8 V
Recom Power RNM-3.315S/H	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	84 %	2000 V	66 mA	ITE (Commercial)	3.6 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	15 V	85 °C	-40 C	3 V
Recom Power RNM-123.3S/P	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	75 %	1000 V	303 mA	ITE (Commercial)	13.2 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	3.3 V	85 °C	-40 C	10.8 V
Recom Power RNM-3.309S/H	SCP	0.33 in	8.3 mm	0.27 "	6.8 mm	0.33 "	8.3 mm	78 %	2000 V	111 mA	ITE (Commercial)	3.6 V	1	Isolated Module	Through Hole	6-DIP Module 4 Leads	9 V	85 °C	-40 C	3 V
