ALCOSWITCH MPG Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH PUSHBUTTON 3PDT 6A 125V

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Circuit	Electrical Life

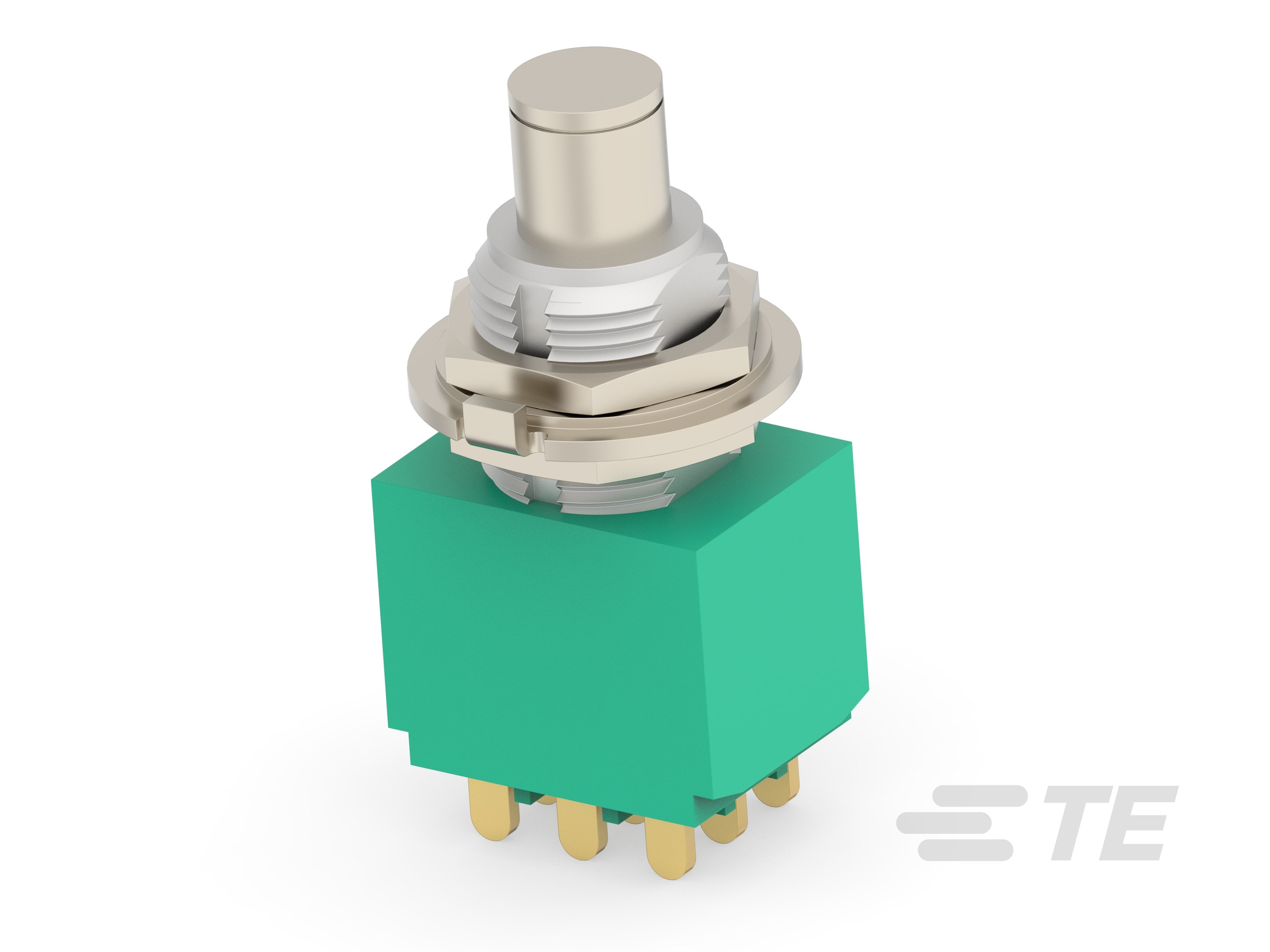

TE Connectivity AMP Connectors MPG306D	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	Solder Lug	28 V	On-On	125 V	3PDT

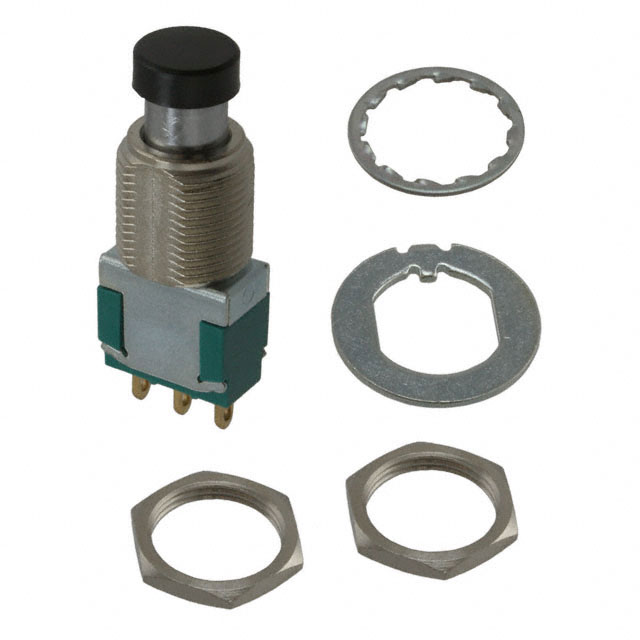

TE Connectivity AMP Connectors MPG106F	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	Solder Lug	28 V	On-Mom	125 V	SPDT	50000 Cycles

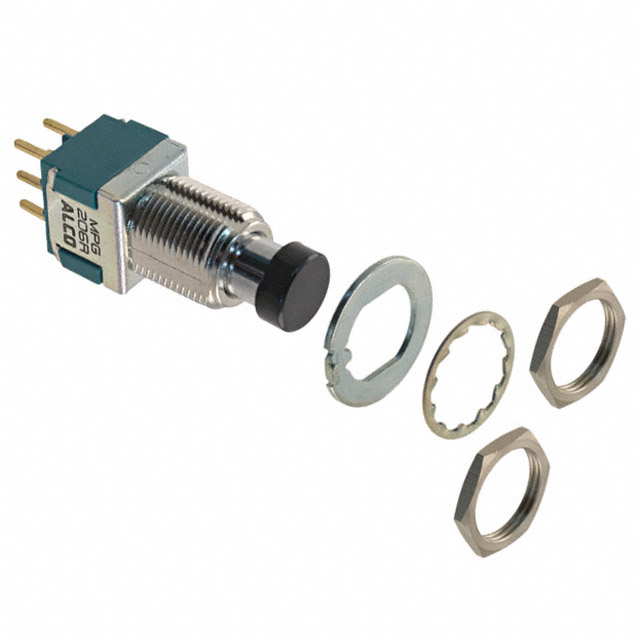

TE Connectivity AMP Connectors MPG206RPC	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	PC Pin	28 V	On-Mom	125 V	DPDT	50000 Cycles
TE Connectivity AMP Connectors MPG406R	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	Solder Lug	28 V	On-Mom	125 V	4PDT
TE Connectivity AMP Connectors MPG206R	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	Solder Lug	28 V	On-Mom	125 V	DPDT

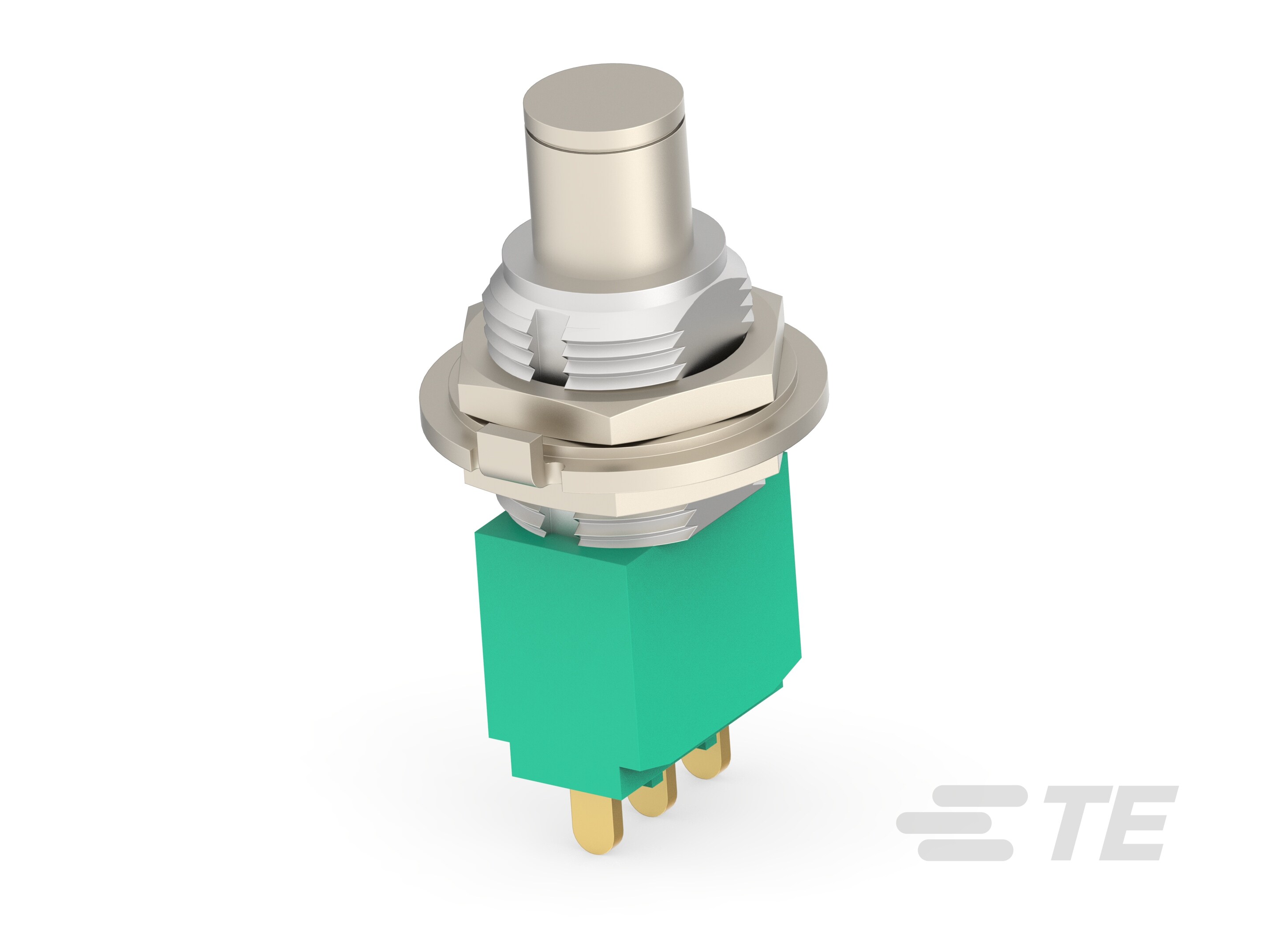

TE Connectivity AMP Connectors MPG106D	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	Solder Lug	28 V	On-On	125 V	SPDT

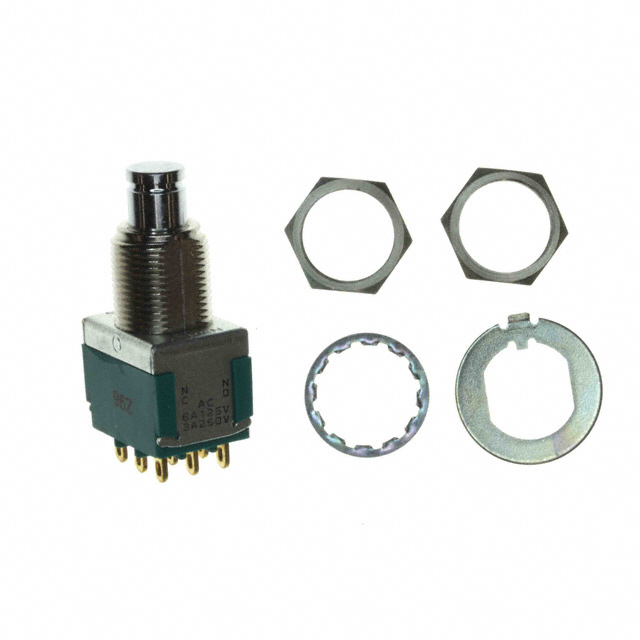

TE Connectivity AMP Connectors MPG306F	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	Solder Lug	28 V	On-Mom	125 V	3PDT	50000 Cycles

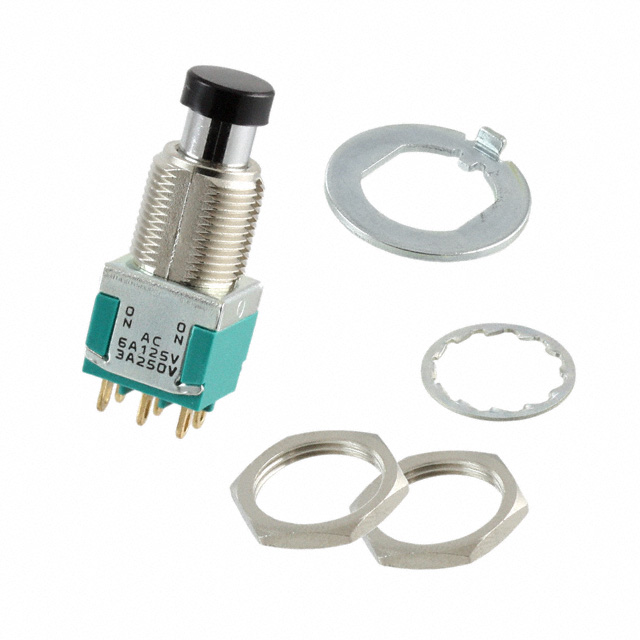

TE Connectivity AMP Connectors MPG206N	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	Solder Lug	28 V	On-On	125 V	DPDT	50000 Cycles
TE Connectivity AMP Connectors MPG406N	Standard	80 °C	-20 ░C	Button Round	Panel Mount Rear	No Marking	11.8 mm	Black	4 A 6 A	Solder Lug	28 V	On-On	125 V	4PDT
