PM4341 Series
Manufacturer: Pulse Electronics
Beta
⌘K

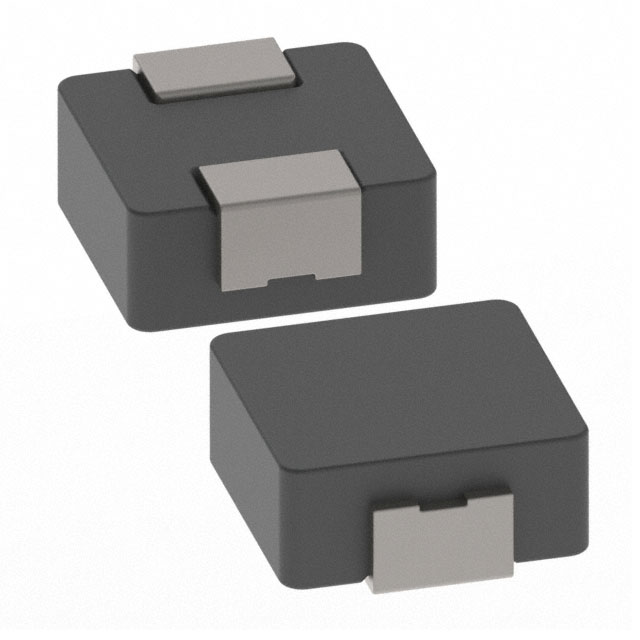

POWER INDUCTORS - SMD 12UH 3.3A 3MM 20% AEC-Q200
| Part | Shielding | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | Package / Case | Ratings | Current - Saturation (Isat) | Mounting Type | Tolerance | DC Resistance (DCR) [Max] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Shielded | 6.9 mm | 0.299 " | 7.6 mm | 0.272 in | 12 µH | 0.118 " | 3 mm | 100 kHz | Nonstandard | AEC-Q200 | 5.5 A | Surface Mount | 20 % | 93 mOhm | 3.3 A | -55 C | 125 °C | Molded |
 Pulse Electronics | Shielded | 6.9 mm | 0.299 " | 7.6 mm | 0.272 in | 2.2 µH | 0.118 " | 3 mm | 100 kHz | Nonstandard | AEC-Q200 | 14 A | Surface Mount | 20 % | 20 mOhm | 8 A | -55 C | 125 °C | Molded |
Pulse Electronics | Shielded | 6.9 mm | 0.299 " | 7.6 mm | 0.272 in | 0.118 " | 3 mm | 100 kHz | Nonstandard | AEC-Q200 | 41 A | Surface Mount | 30 % | 2.5 mOhm | 24 A | -55 C | 125 °C | Molded | |
Pulse Electronics | Shielded | 6.9 mm | 0.299 " | 7.6 mm | 0.272 in | 5.6 µH | 0.118 " | 3 mm | 100 kHz | Nonstandard | AEC-Q200 | 9 A | Surface Mount | 20 % | 48 mOhm | 5 A | -55 C | 125 °C | Molded |
Pulse Electronics | Shielded | 6.9 mm | 0.299 " | 7.6 mm | 0.272 in | 0.68 µH | 0.118 " | 3 mm | 100 kHz | Nonstandard | AEC-Q200 | Surface Mount | 20 % | 5.5 mOhm | 15.5 A | -55 C | 125 °C | Molded |
