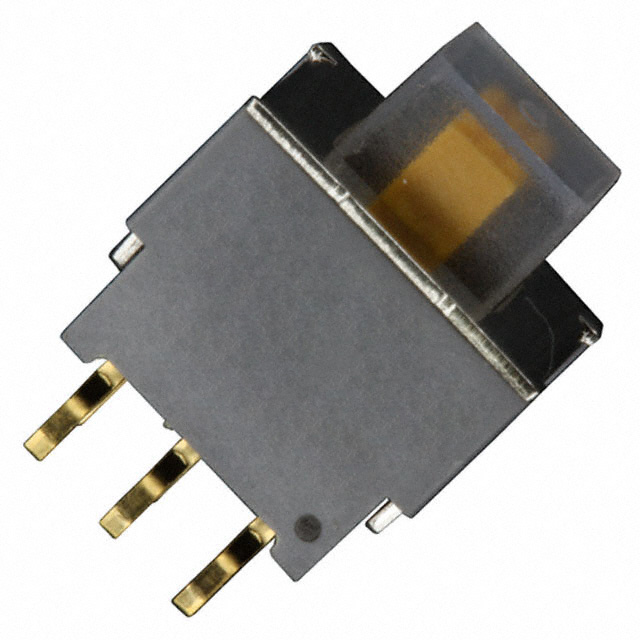

ASE2E-2M Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SLIDE SWITCH, DPDT, 0.05A, 60V, TH ROHS COMPLIANT: YES
| Part | Electrical Life | Operating Force [Min] | Operating Force [Max] | Switch Travel | Actuator Length [x] | Voltage Rating - DC | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Switch Function | Circuit | Contact Timing | Voltage Rating - AC | Features | Contact Finish | Mounting Type | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 10000 Cycles | 70 gf | 500 gf | 2.2 mm | 2.8 mm | 60 VDC | 50 mA | 85 °C | -20 ░C | PC Pin | On-Off-On | DPDT | Non-Shorting (BBM) | 60 V | Washable | Gold | Through Hole | Standard |
