OAB22569 Series
Manufacturer: ORION FANS
Beta
⌘K

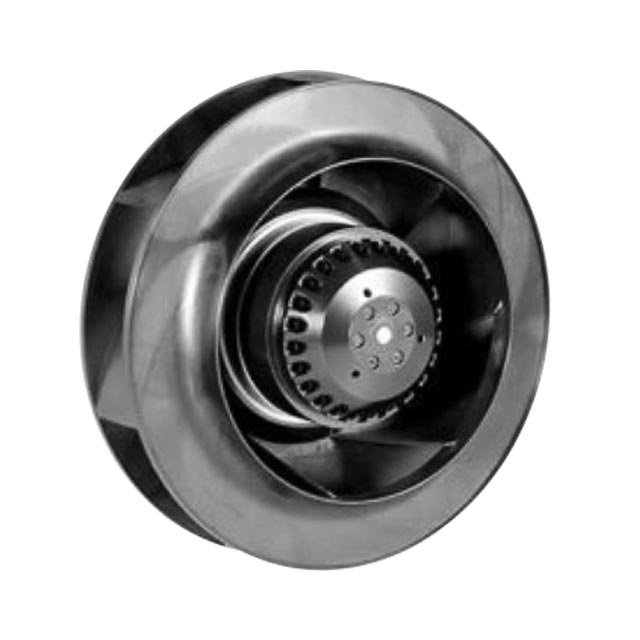

FAN IMP MTRZD 225X69MM 230VAC W/
| Part | Lifetime @ Temp. | Current Rating (Amps) | Material - Blade | Material - Frame | Size / Dimension | Size / Dimension [diameter] | RPM | Width [y] | Voltage - Rated | Fan Type | Bearing Type | Static Pressure | Static Pressure | Ingress Protection | Termination | Noise | Air Flow | Air Flow | Features | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Weight | Weight | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 40000 Hrs | 0.56 A | Thermoplastic | Aluminum | Round | 255 mm | 2950 RPM | 69 mm | 230 VAC | Motorized Impellers | Ball | 2.305 in H2O | 574.2 Pa | IP55 - Dust Protected Water Resistant | 4 Wire Leads | 72 dB(A) | 15.4 m³/min | 550 CFM | Permanent Split Capacitor Motor | 60 °C | -40 °C | 60 °C | -40 C | 2.3 kg | 5.1 lbs | 125 W |
ORION FANS | 40000 Hrs | 1.12 A | Thermoplastic | Aluminum | Round | 255 mm | 2950 RPM | 69 mm | 115 VAC | Motorized Impellers | Ball | 2.305 in H2O | 574.2 Pa | IP55 - Dust Protected Water Resistant | 4 Wire Leads | 72 dB(A) | 15.4 m³/min | 550 CFM | Permanent Split Capacitor Motor | 60 °C | -40 °C | 60 °C | -40 C | 2.3 kg | 5.1 lbs | 125 W |
