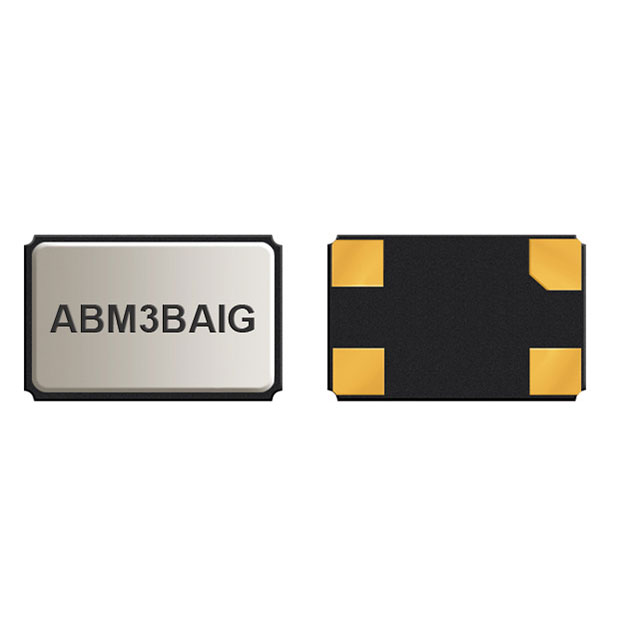

ABM3BAIG Series

Catalog

CRYSTALS XTAL 5032 4-SMD 8.192MHZ TOL +/-30PPM STAB +/-50PPM -40°C ~ 125°C 18PF 100 OHMS

Part	Mounting Type	Frequency Tolerance	Frequency Stability	Package / Case	Frequency	Type	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Load Capacitance	Operating Mode	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings
Abracon LLC ABM3BAIG-8.192MHZ-R100-4Z-T	Surface Mount	30 ppm	50 ppm	4-SMD No Lead	8.192 MHz	MHz Crystal	125 °C	-40 C	100 Ohms	3.2 mm	0.126 in	5 mm	0.197 in	18 pF	Fundamental	0.035 in	0.9 mm	AEC-Q200
Abracon LLC ABM3BAIG-16.000MHZ-12-2-T	Surface Mount	20 ppm	100 ppm	4-SMD No Lead	16 MHz	MHz Crystal	125 °C	-40 C	50 Ohms	3.2 mm	0.126 in	5 mm	0.197 in	12 pF	Fundamental	0.035 in	0.9 mm	AEC-Q200
Abracon LLC ABM3BAIG-18.080MHZ-10-7Z-T	Surface Mount	15 ppm	50 ppm	4-SMD No Lead	18.08 MHz	MHz Crystal	125 °C	-40 C	50 Ohms	3.2 mm	0.126 in	5 mm	0.197 in	10 pF	Fundamental	0.035 in	0.9 mm	AEC-Q200
