80155 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

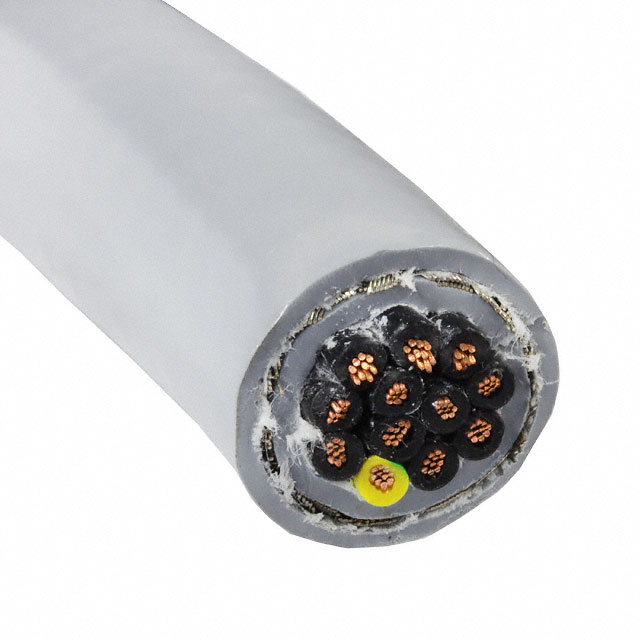

MULTICONDUCTOR CABLE, ECOFLEX® PUR, SHIELDED, 12 CONDUCTOR, 14 AWG, 2.11 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Cable Type | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Length [x] | Length [x] | Voltage | Conductor Insulation | Number of Conductors | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | Multi-Conductor | Polyurethane (PU) | 90 °C | -50 °C | 34 AWG | 105 | Slate | 0.501 in | 12.73 mm | Braid | 0.0319 in | 0.81 mm | Copper Tinned | 100 ft | 30.5 m | 600 V | Polyphenylene Ether (PPE) | 12 | 14.5 AWG |
