C22F Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

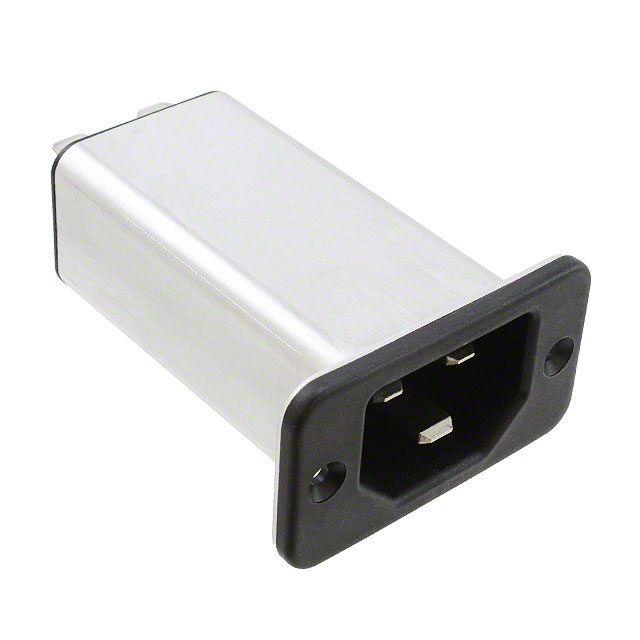

AC POWER ENTRY MODULES C22F INLET FILTER 20A
| Part | Voltage Rating - Appliance Inlet | Mounting Type | Material Flammability Rating | Approval Agency | Current Rating - Appliance Inlet | Filter Type | Termination | Connector Type | Connector Style | Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating - Filter [Min] | Current Rating - Filter [Max] | Ingress Protection | Accomodates a Fuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 250 VAC | Flange Panel Mount | UL94 V-0 | cULus ENEC | 16 A | Filtered (EMI RFI) - Commercial | Solder Eyelet | Receptacle Male Blades | IEC 320-C22 | Shielded | 26.8 mm | 34.8 mm | 16 A | 20 A | IP40 |
