1393813 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

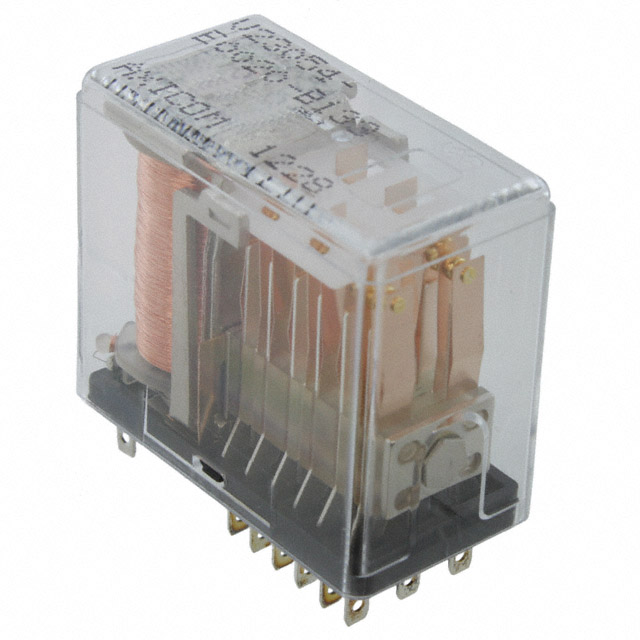

SIGNAL RELAY 24VDC 2A 6PDT(35X19X30)MM SOCKET
| Part | Coil Resistance | Mounting Type | Contact Form | Contact Rating (Current) | Must Operate Voltage | Switching Voltage [Max] | Coil Voltage | Load - Max Switching | Termination Style | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Coil Type | Release Time | Relay Type | Contact Material | Contact Material [custom] | Contact Material [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 630 Ohms | Socketable | 6PDT | 2 A | 13 VDC | 125 VAC 150 VDC | 24 VDC | 250 VA 300 W | Plug In | 16 ms | 70 °C | -40 C | 38.1 mA | Non Latching | 2 ms | General Purpose | Gold (Au) Silver (Ag) | ||
 TE Connectivity AMP Connectors | 630 Ohms | Socketable | 6PDT | 2 A | 20 VDC | 125 VAC 150 VDC | 24 VDC | 250 VA 300 W | Plug In | 16 ms | 70 °C | -40 C | 38.1 mA | Non Latching | 2 ms | General Purpose | Gold (Au) Silver (Ag) | ||
TE Connectivity AMP Connectors | 9.2 kOhms | Socketable | 110 VDC | Plug In | 16 ms | 70 °C | -40 C | 12 mA | Non Latching | 2 ms | General Purpose | Gold (Au) Silver (Ag) | |||||||
TE Connectivity AMP Connectors | 1.9 kOhms | Socketable | 6PDT | 2 A | 24 VDC | 125 VAC 150 VDC | 45 VDC | 250 VA 300 W | Plug In | 16 ms | 70 °C | -40 C | 23.7 mA | Non Latching | 2 ms | General Purpose | Gold (Au) Silver (Ag) | ||
TE Connectivity AMP Connectors | |||||||||||||||||||
TE Connectivity AMP Connectors | Socketable | 6PST-NO (6 Form A) | Plug In | 16 ms | 70 °C | -40 C | Non Latching | 2 ms | General Purpose | Gold (Au) Silver (Ag) | |||||||||
TE Connectivity AMP Connectors | 185 Ohms | Socketable | 6PDT | 2 A | 10 VDC | 125 VAC 150 VDC | 12.5 VDC | 250 VA 300 W | Plug In | 16 ms | 70 °C | -40 C | 67.6 mA | Non Latching | 2 ms | General Purpose | Gold | Au | |
TE Connectivity AMP Connectors | 390 Ohms | Socketable | 20 VDC | Plug In | 16 ms | 70 °C | -40 C | 51.3 mA | Non Latching | 2 ms | General Purpose | Gold (Au) Silver (Ag) | |||||||
TE Connectivity AMP Connectors | Socketable | Plug In | 16 ms | 70 °C | -40 C | Non Latching | 2 ms | General Purpose | Gold (Au) Silver (Ag) | ||||||||||
TE Connectivity AMP Connectors | Socketable | 6PST-NO (6 Form A) | Plug In | 16 ms | 70 °C | -40 C | Non Latching | 2 ms | General Purpose |
