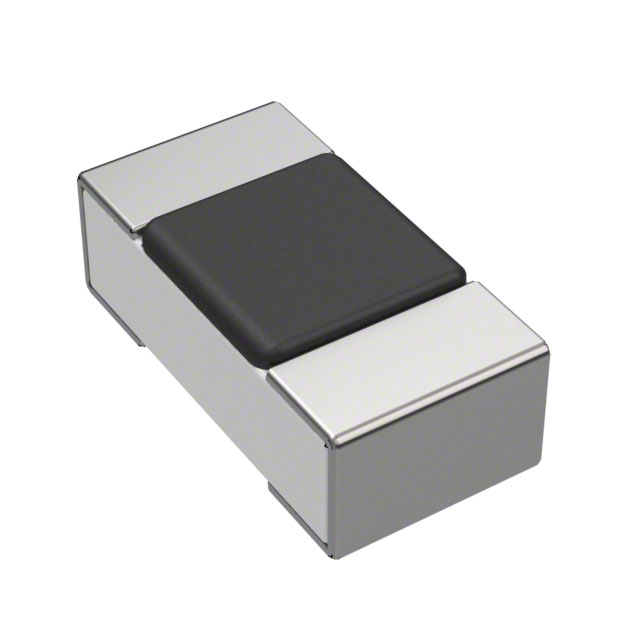

CR01005 Series

Catalog

THICK FILM RESISTORS - SMD RES 01005 2K2 5% 31MW TC200

Part	Supplier Device Package	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Power (Watts)	Power (Watts)	Number of Terminations [custom]	Tolerance	Composition	Temperature Coefficient
Bourns Inc. CR01005-JW-222GLF	01005	2200 Ohms	0.15 mm	0.006 "	-55 C	125 °C	0.008 in	0.016 in	0.4 mm	0.2 mm	01005 (0402 Metric)	0.03125 W	30 mW	2	5 %	Thick Film	200 ppm/°C
Bourns Inc. CR01005-FW-1002GLF	01005	10000 Ohms	0.15 mm	0.006 "	-55 C	125 °C	0.008 in	0.016 in	0.4 mm	0.2 mm	01005 (0402 Metric)	0.03125 W	30 mW	2	1 %	Thick Film	200 ppm/°C
Bourns Inc. CR01005-JW-331GLF	01005	330 Ohms	0.15 mm	0.006 "	-55 C	125 °C	0.008 in	0.016 in	0.4 mm	0.2 mm	01005 (0402 Metric)	0.03125 W	30 mW	2	5 %	Thick Film	200 ppm/°C
