5419 Series

Catalog

TAPE FILM GOLD 22.50"X36YDS

Part	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Shelf Life	Shelf Life Start	Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Usage	Color	Adhesive	Tape Type	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Width [x]	Width [x]	Length	Length	Length	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Width	Width	Width	Width [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [y]	Width [y]
3M Electronic Specialty 5419 22.5"X36YD	27 °C	80 °F	60 °F	16 °C	36 Months	Date of Manufacture	Polyimide	1.7 mils	0.0017 in	0.043 mm	0.0027 in	0.069 mm	2.7 mils	High Temperature Masking Wave Soldering	Gold	Silicone	Film	1 mils	0.025 mm	0.001 "	571.5 mm	22.5 in	32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-100 °F

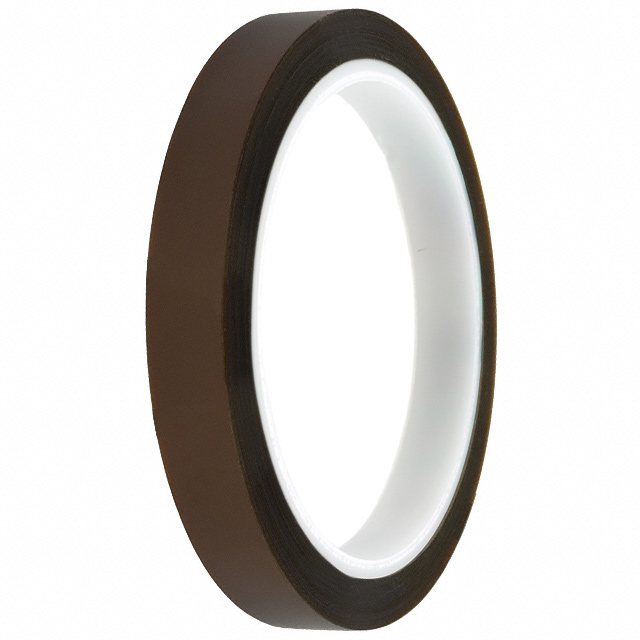

3M Electronic Specialty 5419 GOLD, 3/8 IN X 36 YD	27 °C	80 °F	60 °F	16 °C	36 Months	Date of Manufacture	Polyimide	1.7 mils	0.0017 in	0.043 mm	0.0027 in	0.069 mm	2.7 mils	High Temperature Masking Wave Soldering	Gold	Silicone	Film	1 mils	0.025 mm	0.001 "			32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-100 °F	9.65 mm	0.38 in
3M Electronic Specialty 5419 GOLD, 1 1/2 IN X 36	27 °C	80 °F	60 °F	16 °C	36 Months	Date of Manufacture	Polyimide	1.7 mils	0.0017 in	0.043 mm	0.0027 in	0.069 mm	2.7 mils	High Temperature Masking Wave Soldering	Gold	Silicone	Film	1 mils	0.025 mm	0.001 "	38.1 mm	1.5 in	32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-100 °F
3M Electronic Specialty 5419 GOLD1/4 IN X 36 YD	27 °C	80 °F	60 °F	16 °C	36 Months	Date of Manufacture	Polyimide	1.7 mils	0.0017 in	0.043 mm	0.0027 in	0.069 mm	2.7 mils	High Temperature Masking Wave Soldering	Gold	Silicone	Film	1 mils	0.025 mm	0.001 "			32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-100 °F	6.35 mm	0.25 in	0.25 in

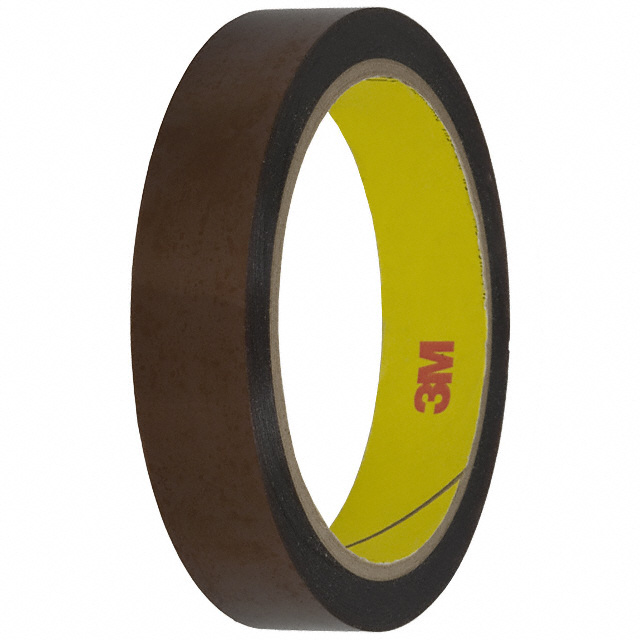

3M Electronic Specialty 5419 GOLD 3/4IN X 36YD	27 °C	80 °F	60 °F	16 °C	36 Months	Date of Manufacture	Polyimide	1.7 mils	0.0017 in	0.043 mm	0.0027 in	0.069 mm	2.7 mils	High Temperature Masking Wave Soldering	Gold	Silicone	Film	1 mils	0.025 mm	0.001 "	19.05 mm	0.75 in	32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-100 °F				0.75 in
3M Electronic Specialty 5419-24X36YD BULK PLASTIC CORE		160 °C	-140 °F -60 °C		36 Months	Date of Manufacture	Polyimide	1.6 mils	0.0016 "	0.041 mm	0.0028 in	0.071 mm	71.12 microns		Gold	Silicone	High Temp Polyimide Polyimide Film						32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-99 °F					1.2 mils	0.0012 "	0.03 mm	25 mm	0.98 in
3M Electronic Specialty 5419-25"X36YD		160 °C	-140 °F -60 °C		36 Months	Date of Manufacture	Polyimide	1.6 mils	0.0016 "	0.041 mm	0.0028 in	0.071 mm	71.12 microns		Gold	Silicone	High Temp Polyimide Polyimide Film				635 mm	25 in	32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-99 °F					1.2 mils	0.0012 "	0.03 mm
3M Electronic Specialty 5419 GOLD,PLASTIC CORE 1/2X36	27 °C	80 °F	60 °F	16 °C	36 Months	Date of Manufacture	Polyimide	1.7 mils	0.0017 in	0.043 mm	0.0027 in	0.069 mm	2.7 mils	High Temperature Masking Wave Soldering	Gold	Silicone	Film	1 mils	0.025 mm	0.001 "			32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-100 °F	12.7 mm	0.5 in	0.5 "

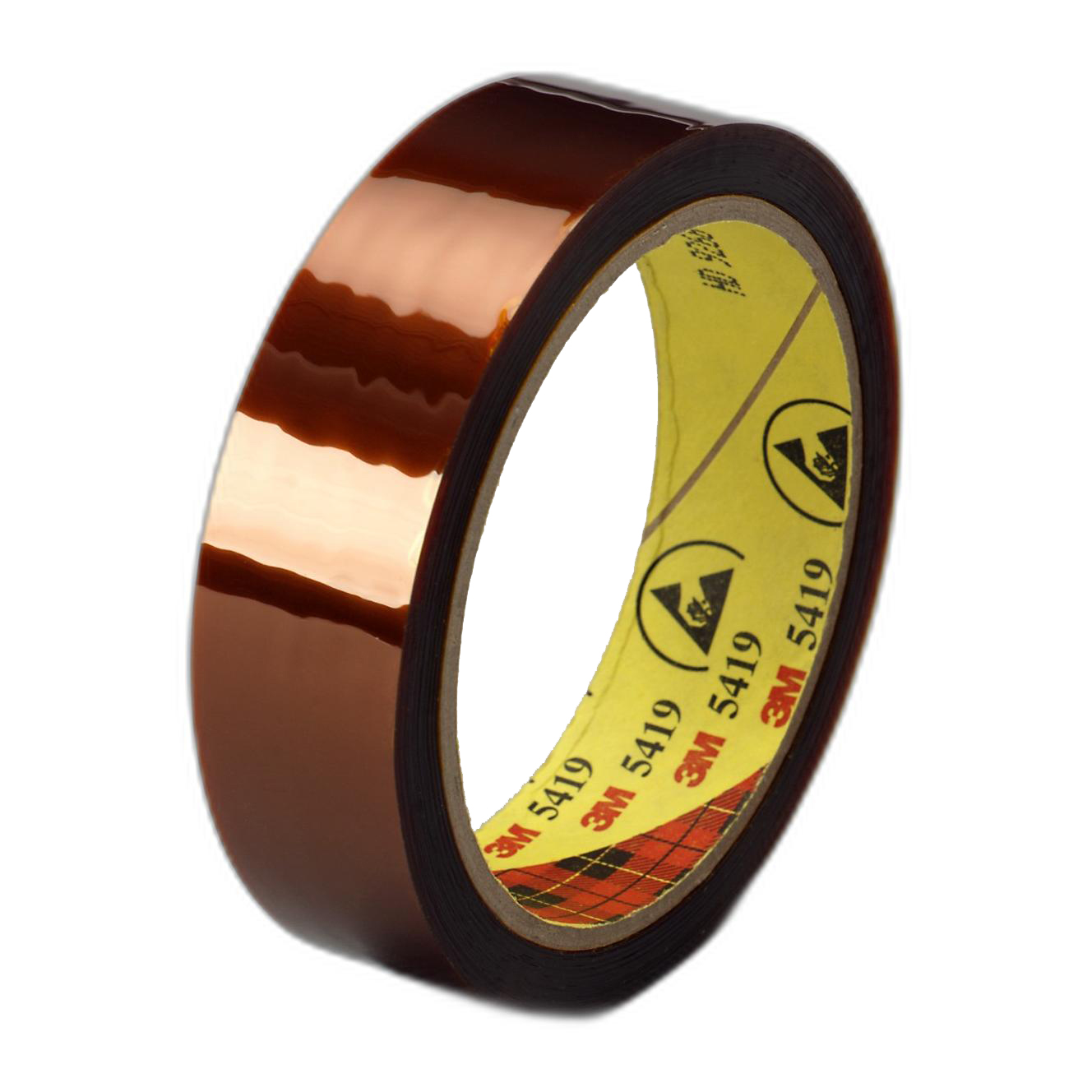

3M Electronic Specialty 5419-22.5"X36YD	27 °C	80 °F	60 °F	16 °C	36 Months	Date of Manufacture
3M Electronic Specialty 5419 PLASTIC CORE1/4X36	27 °C	80 °F	60 °F	16 °C	36 Months	Date of Manufacture	Polyimide	1.7 mils	0.0017 in	0.043 mm	0.0027 in	0.069 mm	2.7 mils	High Temperature Masking Wave Soldering	Gold	Silicone	Film	1 mils	0.025 mm	0.001 "			32.9 m	108 ft	36 yd	260 °C	260 °C	-73 °C	-100 °F	6.35 mm	0.25 in	0.25 in
