ANT-LTE Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNA LTE RPC PCB ADHES 100MM UFL

Part	Termination	Frequency (Center/Band)	VSWR	Frequency Group	Antenna Type	Number of Bands	RF Family/Standard	Height (Max) [z]	Height (Max) [z]	Gain	Applications	Mounting Type	Power - Max [Max]	Features	Features	Frequency Range [Max]	Frequency Range [Min]	Return Loss	VSWR [custom]	Height (Max)	Height (Max) [Max] [z]	Ingress Protection	Height (Max) [z]

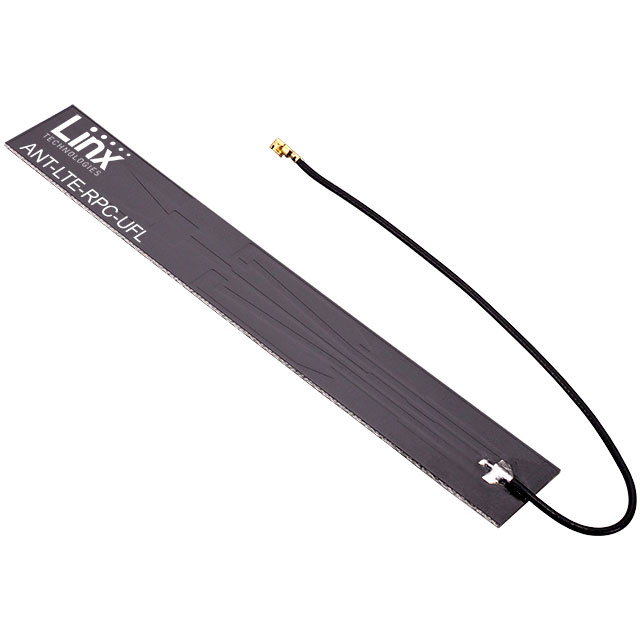

TE Connectivity AMP Connectors ANT-LTE-RPC-UFL	I-PEX MHF1 U.FL (UMCC)	1.575 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 3.3 GHz 3.4 GHz 3.5 GHz 3.6 GHz 600 MHz 700 MHz 800 MHz 850 MHz 900 MHz	1.4 1.8 2.1 2.4 2.5 4.1	Wide Band	PCB Trace	7	Cellular Navigation	0.031 in	0.8 mm	3.1 dBi 3.6 dBi 4.6 dBi 4.9 dBic 5 dBi 5.1 dBic 6.3 dBi	2G 3G 4G BeiDou COMPASS Galileo GLONASS GNSS GPS GSM LoRaWAN LPWA LTE LTE-M NB-IoT UMTS	Adhesive	2 W	Cable	100 mm	3.8 GHz	600 MHz	-15.6 dB -10.9 dB -9 dB -7.7 dB -7.4 dB -4.3 dB

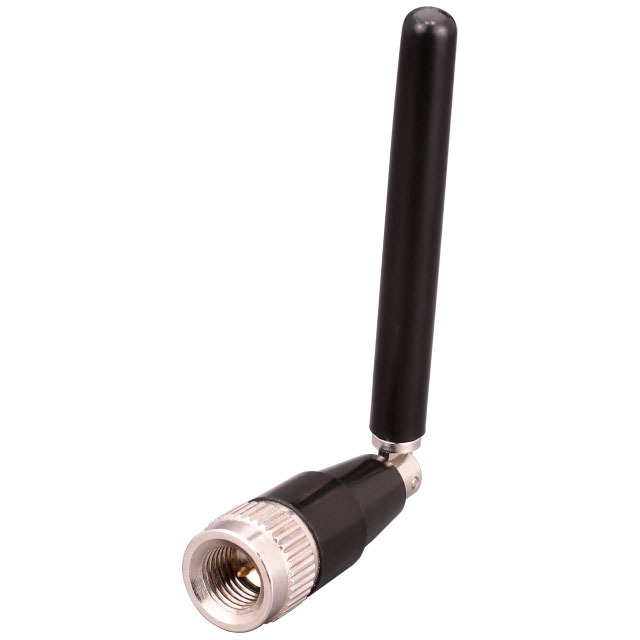

TE Connectivity AMP Connectors ANT-LTE-MON-SMA		1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 3.4 GHz 3.5 GHz 3.6 GHz 3.7 GHz 3.8 GHz 700 MHz 800 MHz 850 MHz 900 MHz		Wide Band	Tilt/Swivel Whip	6	Cellular				2G 3G 4G CAT-M1 Cellular LTE NB-IoT	Connector Mount	15 W			2.17 GHz 2.4 GHz 2.7 GHz 3.6 GHz 3.8 GHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 3.4 GHz 698 MHz 3600 MHz		2.5 2.75 3.5 4.5

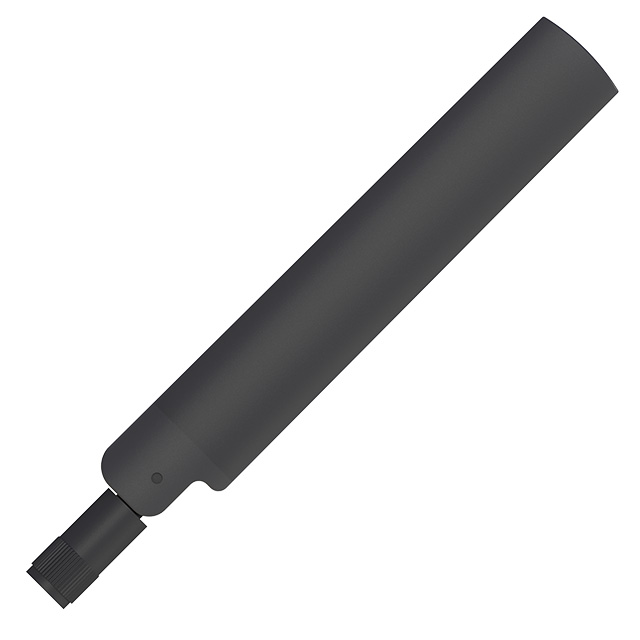

TE Connectivity AMP Connectors ANT-LTE-WS-SMA		1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 700 MHz 800 MHz 850 MHz 900 MHz	2 2.5	Wide Band	Blade Tilt	4	Cellular	5.366 in	136.3 mm	3.1 dBi 4 dBi 5.8 dB	2G 3G 4G CAT-M1 Cellular IoT LTE NB-IoT	Connector Mount	15 W			2.17 GHz 2.4 GHz 2.7 GHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz

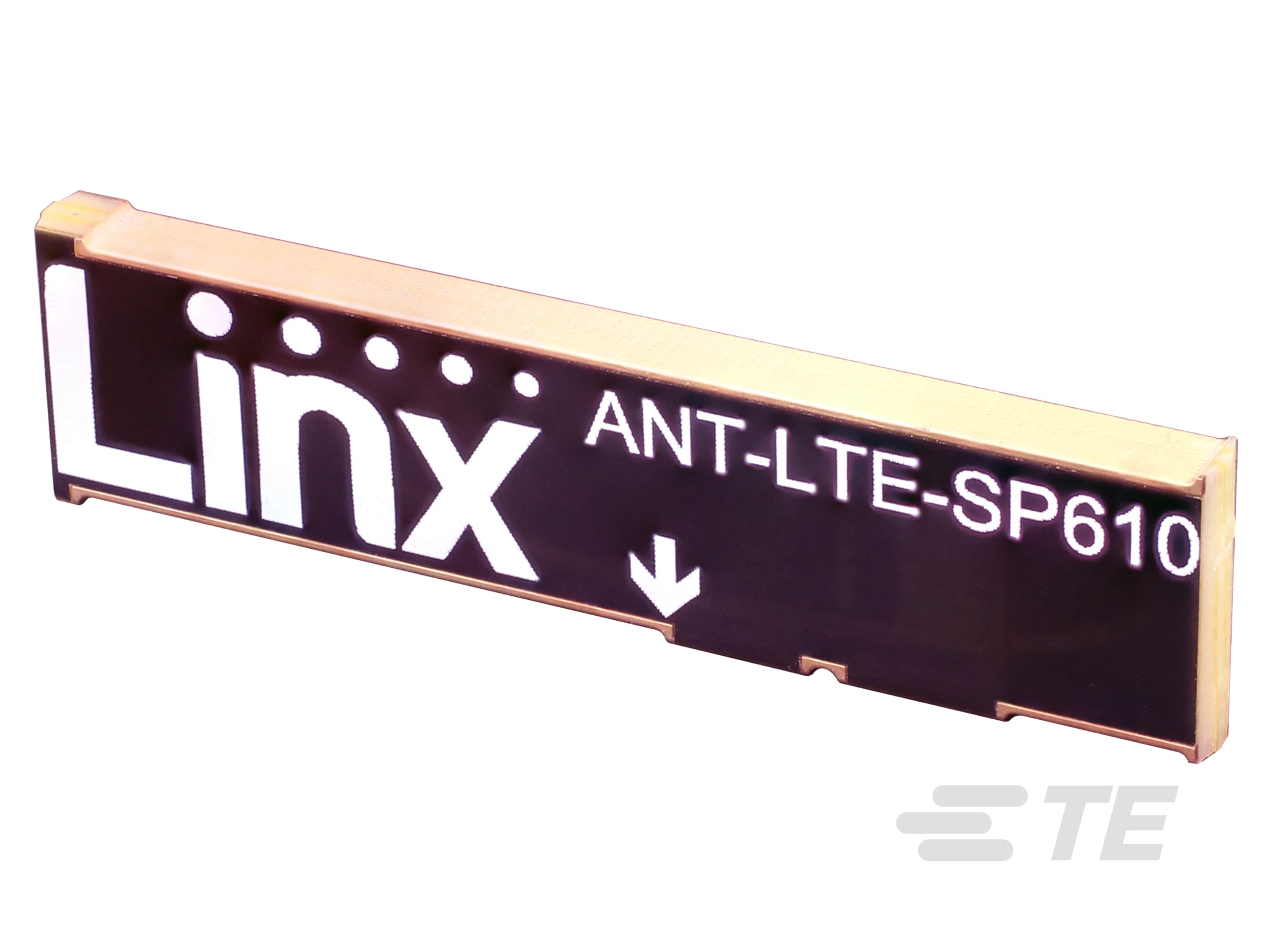

TE Connectivity AMP Connectors ANT-LTE-SP610-T	Solder	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz		Wide Band	Chip	4	Cellular			2.7 dBi 4.9 dBic 5.1 dBic 5.3 dBi	4G CAT-M1 Cellular GSM LPWA LTE LTE-M NB-IoT UMTS	Surface Mount	10 W			2.17 GHz 2.4 GHz 2.69 GHz 960 MHz	1.71 GHz 2.3 GHz 2.49 GHz 698 MHz	-6 dB -5.8 dB -5.3 dB -3.5 dB		2.8 mm	0.11 in

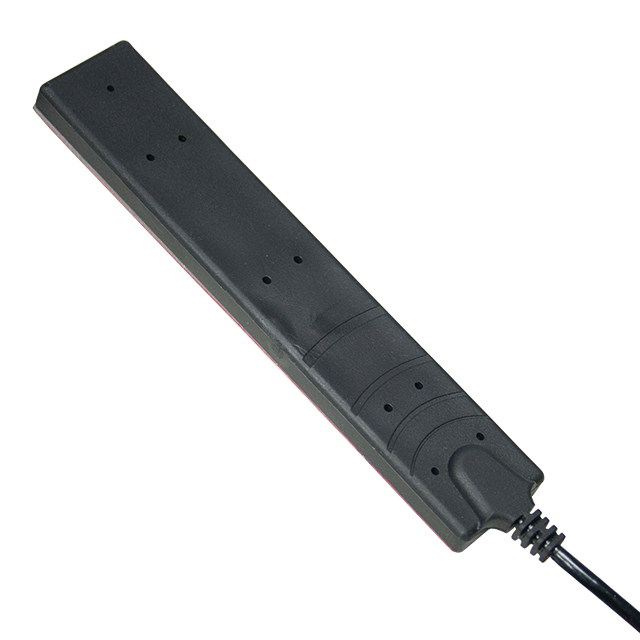

TE Connectivity AMP Connectors ANT-LTE-VDP-2000-SMA		1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 700 MHz 850 MHz 900 MHz	1.25 1.3 1.35 1.75	Wide Band	Flat Bar	3	Cellular		6.71 mm	3.25 dBi 3.5 dBi 4.5 dBic	3G 4G CAT-M1 Cellular LTE NB-IoT	Adhesive	10 W	Cable - 2m		2.17 GHz 2.4 GHz 2.7 GHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz					IP67	0.264 in
TE Connectivity AMP Connectors ANT-LTE-CER-T	Solder	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 2.7 GHz 700 MHz 850 MHz 900 MHz	2.5 3.2 4	Wide Band	Chip	4	Cellular		5.15 mm	4 dBi	3G 4G CAT-M1 Cellular LTE NB-IoT	Surface Mount				2.17 GHz 2.4 GHz 2.7 GHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz						0.203 in
