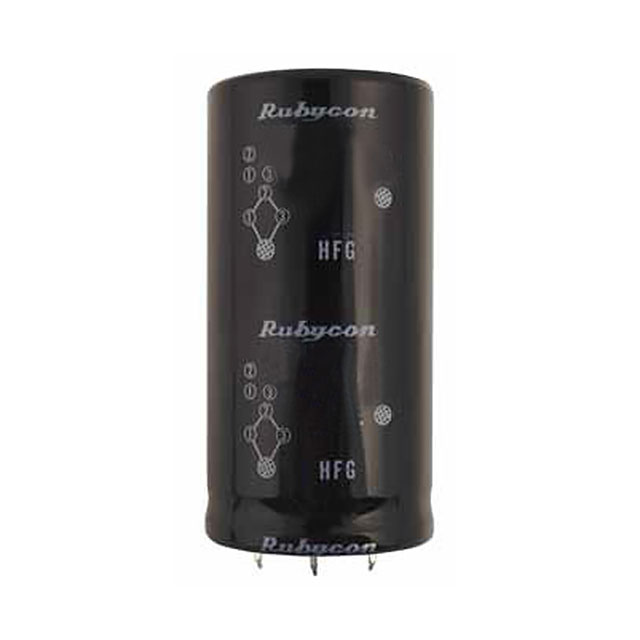

HFG Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 4 PIN ELECTROLYTIC CAPACITORS

Part	Applications	Ripple Current @ Low Frequency	Polarization	Lead Spacing	Lead Spacing	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Lifetime @ Temp.	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Rubycon 350HFG1000MBN35X70	General Purpose	4.12 A	Polar	0.886 in	22.5 mm	1000 µF	Radial Can - 4 Lead	1.378 "	35 mm	350 V	5000 Hrs	5.768 A	105 ░C	-25 °C	Through Hole	20 %	2.835 in	72 mm
Rubycon 420HFG820MBN45X50	General Purpose	3.52 A	Polar	0.886 in	22.5 mm	820 µF	Radial Can - 4 Lead	1.772 "	45 mm	420 V	5000 Hrs	4.928 A	105 ░C	-25 °C	Through Hole	20 %			2.047 in	52 mm
Rubycon 420HFG1800MBN45X90	General Purpose	5.7 A	Polar	0.886 in	22.5 mm	1800 µF	Radial Can - 4 Lead	1.772 "	45 mm	420 V	5000 Hrs	7.98 A	105 ░C	-25 °C	Through Hole	20 %	3.622 in				92 mm
Rubycon 420HFG680MBN40X55	General Purpose	3.52 A	Polar	0.886 in	22.5 mm	680 µF	Radial Can - 4 Lead	1.575 in	40 mm	420 V	5000 Hrs	4.928 A	105 ░C	-25 °C	Through Hole	20 %			2.244 "	57 mm
Rubycon 350HFG2200MBN45X85	General Purpose	5.69 A	Polar	0.886 in	22.5 mm	2200 µF	Radial Can - 4 Lead	1.772 "	45 mm	350 V	5000 Hrs	7.966 A	105 ░C	-25 °C	Through Hole	20 %			3.425 in	87 mm
Rubycon 400HFG820MBN40X55	General Purpose	3.69 A	Polar	0.886 in	22.5 mm	820 µF	Radial Can - 4 Lead	1.575 in	40 mm	400 V	5000 Hrs	5.166 A	105 ░C	-25 °C	Through Hole	20 %			2.244 "	57 mm
Rubycon 400HFG1000MBN35X75	General Purpose	4.25 A	Polar	0.886 in	22.5 mm	1000 µF	Radial Can - 4 Lead	1.378 "	35 mm	400 V	5000 Hrs	5.95 A	105 ░C	-25 °C	Through Hole	20 %		77 mm	3.031 in
Rubycon 400HFG1500MBN45X70	General Purpose	4.83 A	Polar	0.886 in	22.5 mm	1.5 mF	Radial Can - 4 Lead	1.772 "	45 mm	400 V	5000 Hrs	6.762 A	105 ░C	-25 °C	Through Hole	20 %	2.835 in	72 mm
