RTW48 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), INDUSTRIAL, 1 OUTPUT, ADJUSTABLE, FIXED, 48 V

Part	Current - Output 1	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1	Efficiency	Number of Outputs	Type	Voltage - Isolation	Mounting Type	Power (Watts)	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]

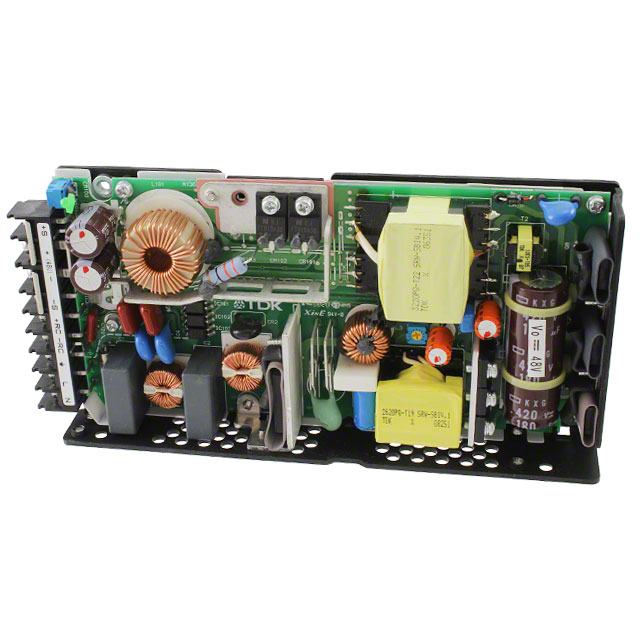

TDK Corporation RTW48-3R2	3.2 A	ITE (Commercial)	71 °C	-10 °C	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	48 V	89 %	1	Open Frame	3000 V	Chassis Mount	150 W	CE cURus TUV	265 VAC	85 VAC
TDK Corporation RTW48-2R1	2.1 A	ITE (Commercial)	71 °C	-10 °C	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	48 V	88 %	1	Open Frame	3000 V	Chassis Mount	100 W	CE cURus TUV	265 VAC	85 VAC	6.3 in	3.23 in	24.13 mm	82 mm	160 mm	24.2 mm
TDK Corporation RTW48-6R5L	7 A	ITE (Commercial)	71 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Remote On/Off Remote Sense Universal Input	48 V	89 %	1	Open Frame	3000 V	Chassis Mount	300 W	CE cURus TUV	265 VAC	85 VAC	9.84 in	4.72 in	1.54 in	120 mm	250 mm	39.2 mm
TDK Corporation RTW48-3R2C	3.2 A	ITE (Commercial)	71 °C	-10 °C	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	48 V	89 %	1	Enclosed	3000 V	Chassis Mount	150 W	CE cURus TUV	265 VAC	85 VAC	7.09 in	3.62 "	1.18 "	92 mm	180 mm	30 mm
TDK Corporation RTW48-6R5H	7 A	ITE (Commercial)	71 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Remote On/Off Remote Sense Universal Input	48 V	89 %	1	Enclosed	3000 V	Chassis Mount	300 W	CE cURus TUV	265 VAC	85 VAC
TDK Corporation RTW48-1R1C	1.1 A	ITE (Commercial)	71 °C	-10 °C	Adjustable Output DC Input Capable Remote On/Off Remote Sense Universal Input	48 V	85 %	1	Enclosed	3000 V	Chassis Mount	50 W	CE cURus TUV	265 VAC	85 VAC	4.88 in	3.23 in	0.87 in	82 mm	124 mm	22 mm
