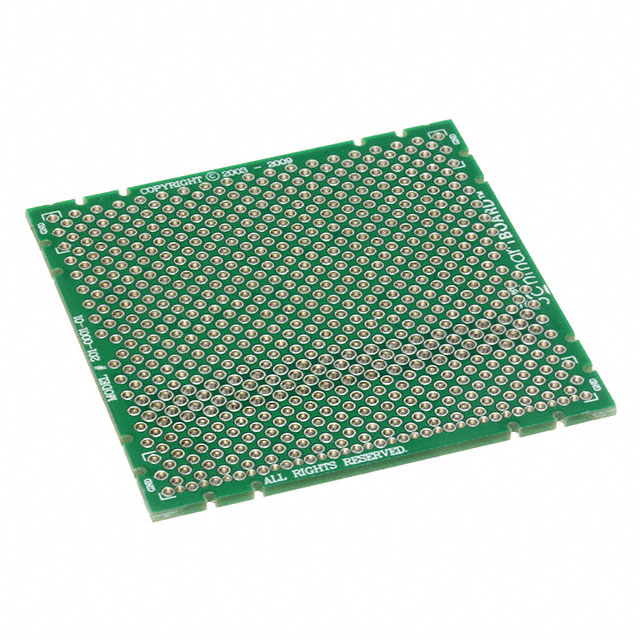

201-0002 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K
BREADBOARD GENERAL PURPOSE NPTH
| Part | Plating | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Proto Board Type | Circuit Pattern | Pitch | Pitch | Hole Diameter [diameter] | Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Non-Plated Through Hole (NPTH) | 2 in | 50.8 mm | 50.8 mm | 2 in | Breadboard General Purpose | Pad Per Hole (Round) | 0.039 " 0.079 " 1 mm 2 mm | Grid | 0.61 mm | 0.024 " |
