JWT100 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 3 OUTPUT, 100 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED

Part	Applications	Voltage - Output 2	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Current - Output 2	Power (Watts)	Current - Output 1	Approval Agency	Voltage - Output 1	Voltage - Isolation	Voltage - Output 3	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]

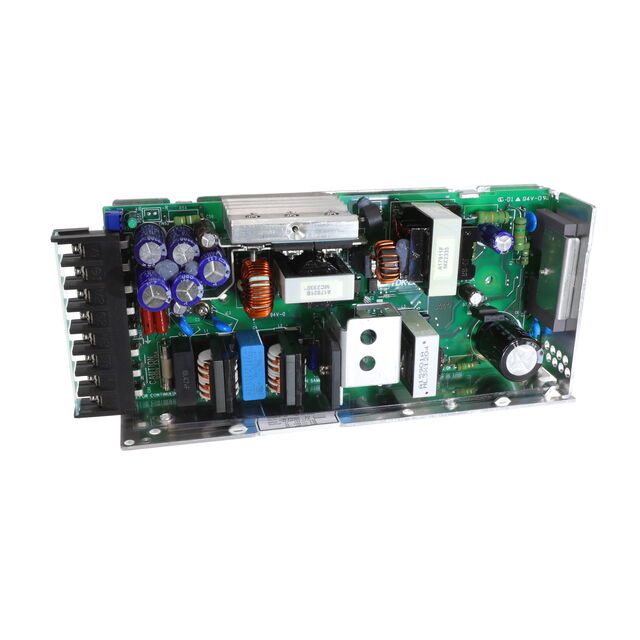

TDK Corporation JWT100-522	ITE (Commercial)	12 V	Adjustable Output DC Input Capable PFC Universal Input	1.89 " 48 mm	3.62 in 92 mm	7.99 in 203 mm	265 VAC	85 VAC	72 %	5.5 A	100 W	13 A	CE	5 V	3000 V	-12 V	Chassis Mount	Open Frame	-10 °C	65 °C	3
TDK Corporation JWT100-522/R	ITE (Commercial)	12 V	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input	1.89 " 48 mm	3.62 in 92 mm	7.99 in 203 mm	265 VAC	85 VAC	72 %	5.5 A	100 W	13 A	CE	5 V	3000 V	-12 V	Chassis Mount	Open Frame	-10 °C	65 °C	3

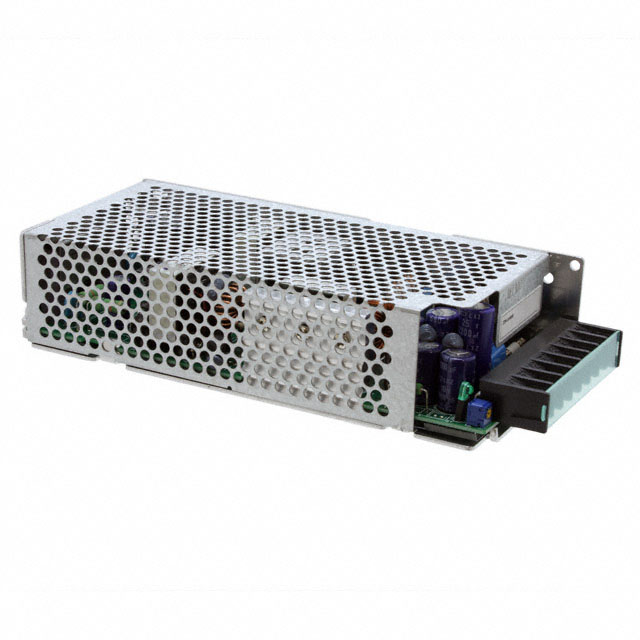

TDK Corporation JWT100-5FF/A	ITE (Commercial)	15 V	Adjustable Output DC Input Capable PFC Universal Input	48 mm	91.9 mm	202.9 mm	265 VAC	85 VAC	72 %	4.5 A	100 W	13 A	CE	5 V	3000 V	-15 V	Chassis Mount	Enclosed	-10 °C	65 °C	3	1.89 in	3.62 in	7.99 in
TDK Corporation JWT100-5FF/RA	ITE (Commercial)	15 V	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input	1.89 " 48 mm	3.62 in 92 mm	7.99 in 203 mm	265 VAC	85 VAC	72 %	4.5 A	100 W	13 A	CE	5 V	3000 V	-15 V	Chassis Mount	Open Frame	-10 °C	65 °C	3
TDK Corporation JWT100-525/R	ITE (Commercial)	12 V	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input	1.89 " 48 mm	3.62 in 92 mm	7.99 in 203 mm	265 VAC	85 VAC	72 %	5.5 A	100 W	13 A	CE	5 V	3000 V	-5 V	Chassis Mount	Enclosed	-10 °C	65 °C	3
TDK Corporation JWT100-522/RA	ITE (Commercial)	12 V	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input	1.89 " 48 mm	3.62 in 92 mm	7.99 in 203 mm	265 VAC	85 VAC	72 %	5.5 A	100 W	13 A	CE	5 V	3000 V	-12 V	Chassis Mount	Open Frame	-10 °C	65 °C	3
TDK Corporation JWT100-525/A	ITE (Commercial)	12 V	Adjustable Output DC Input Capable PFC Universal Input	1.89 " 48 mm	3.62 in 92 mm	7.99 in 203 mm	265 VAC	85 VAC	72 %	5.5 A	100 W	13 A	CE	5 V	3000 V	-5 V	Chassis Mount	Open Frame	-10 °C	65 °C	3
