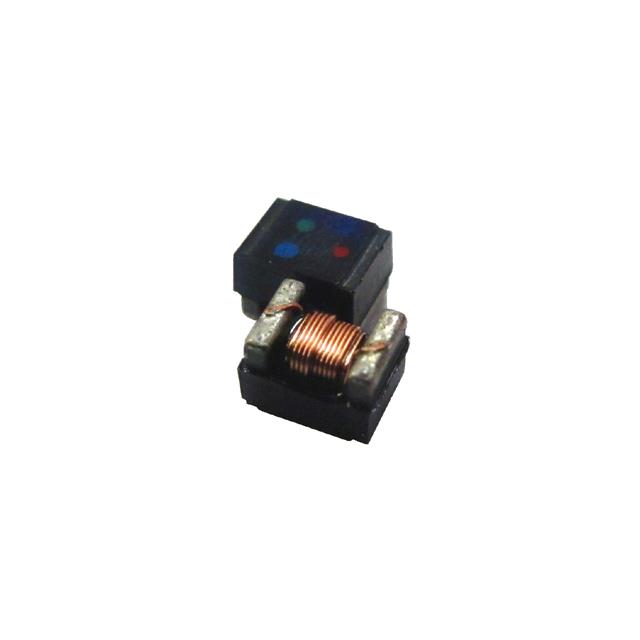

BWLS Series

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

Manufacturer: Pulse Electronics

Catalog

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

Catalog

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Q @ Freq	Current Rating (Amps)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Tolerance	Material - Core	Type	Inductance Frequency - Test	Supplier Device Package	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]

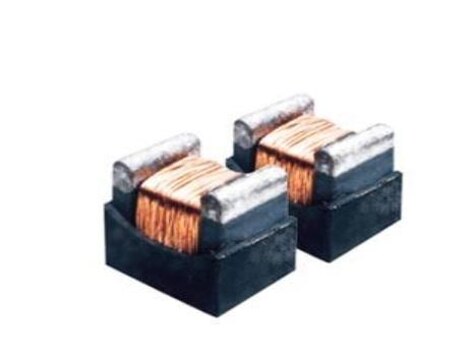

Pulse Electronics BWLS001611096R8K00	Surface Mount	0.043 "	1.1 mm	6.8 µH	3.1 Ohm	0.043 in	0.063 "	1.6 mm	1.1 mm	1608 Metric	0603	7.9 MHz 19	400 mA	Unshielded	105 ░C	-25 °C	55 MHz	10 %	Ferrite	Drum Core Wirewound	7.9 MHz
Pulse Electronics BWLS00241715R11K00	Surface Mount	1.52 mm		110 nH	70 mOhm	1.72 mm	2.4 mm	0.094 in	0.068 in		0805	7.9 MHz 19	2 A	Unshielded	105 ░C	-25 °C	1.2 GHz	10 %	Ferrite	Drum Core Wirewound	7.9 MHz	0805	0.06 in
Pulse Electronics BWLS00241715R56J00	Surface Mount	1.52 mm		560 nH		1.72 mm	2.4 mm	0.094 in	0.068 in		0805	7.9 MHz 35	800 mA	Unshielded	105 ░C	-25 °C	480 MHz	5 %	Ferrite	Drum Core Wirewound	7.9 MHz	0805	0.06 in	400 mOhm
Pulse Electronics BWLS00241715270K00	Surface Mount	1.52 mm		27 µH		1.72 mm	2.4 mm	0.094 in	0.068 in		0805	2.5 MHz 16	0.24 A	Unshielded	105 ░C	-25 °C	19 MHz	10 %	Ferrite	Drum Core Wirewound	2.5 MHz	0805	0.06 in	7.8 Ohm
Pulse Electronics BWLS00100606R22K00	Surface Mount	0.66 mm		220 nH	530 mOhm	0.022 in	0.04 "	1.02 mm			0402 (1005 Metric)		0.38 A	Unshielded	105 ░C	-25 °C	1150 MHz	10 %	Ferrite	Drum Core Wirewound	50 MHz	0402			11	50 MHz	0.026 in	0.55 mm
Pulse Electronics BWLS001611092R7K00	Surface Mount	0.043 "	1.1 mm	2.7 µH		0.043 in	0.063 "	1.6 mm	1.1 mm	1608 Metric	0603	7.9 MHz 17	480 mA	Unshielded	105 ░C	-25 °C	105 MHz	10 %	Ferrite	Drum Core Wirewound	7.9 MHz			1.5 Ohm
Pulse Electronics BWLS00241715220K00	Surface Mount	1.52 mm		22 µH	5.45 Ohm	1.72 mm	2.4 mm	0.094 in	0.068 in		0805	2.5 MHz 16	270 mA	Unshielded	105 ░C	-25 °C	20 MHz	10 %	Ferrite	Drum Core Wirewound	2.5 MHz	0805	0.06 in
Pulse Electronics BWLS00100606R30J00	Surface Mount	0.66 mm		300 nH		0.022 in	0.04 "	1.02 mm			0402 (1005 Metric)		0.42 A	Unshielded	105 ░C	-25 °C	860 MHz	5 %	Ferrite	Drum Core Wirewound	25 MHz	0402		410 mOhm			0.026 in	0.55 mm
Pulse Electronics BWLS00161109R78J00	Surface Mount	0.043 "	1.1 mm	780 nH		0.043 in	0.063 "	1.6 mm	1.1 mm	1608 Metric	0603	7.9 MHz 17	0.85 A	Unshielded	105 ░C	-25 °C	460 MHz	5 %	Ferrite	Drum Core Wirewound	7.9 MHz			830 mOhm
Pulse Electronics BWLS000604046N8K00	Surface Mount			6.8 nH	110 mOhm	0.018 in	0.023 in	0.58 mm	0.46 mm	0603 Metric	0201	6 100 MHz	950 mA	Unshielded	105 ░C	-25 °C	2.4 GHz	10 %	Ferrite	Drum Core Wirewound	100 MHz	0201					0.018 "		0.45 mm
