AA65X Series

Desktop AC Adapters 5V/3A, 9V/3A, 15V/3A or20V/3.25A C6 USB-C

Manufacturer: Phihong USA

Catalog

Desktop AC Adapters 5V/3A, 9V/3A, 15V/3A or20V/3.25A C6 USB-C

Catalog

Desktop AC Adapters 5V/3A, 9V/3A, 15V/3A or20V/3.25A C6 USB-C

Part	Output Connector	Current - Output (Max)	Input Type	Standard Number	Form	Power (Watts)	Approval Agency	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Region Utilized	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Efficiency	Applications

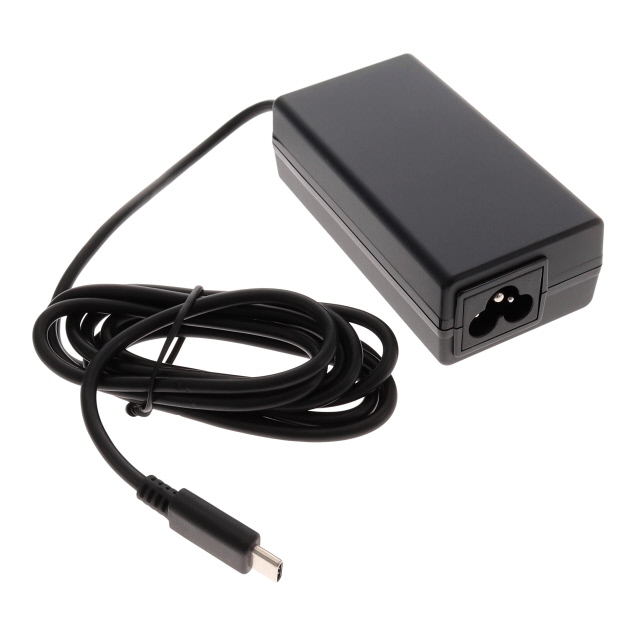

Phihong USA AA65M-59FKA-R	USB C Power Delivery (PD) USB C Receptacle	3 A 3.25 A	Cord (Sold Separately)	62368-1	Desktop (Class I)	65 W	CE cULus	5 V 9 V 15 V 20 V	40 °C	0 °C	1.5 m	59 in	1.89 in	29.5 mm	3.58 in	48 mm	91 mm	1.16 in	International	61.9 mW	264 VAC	90 VAC	IEC 320-C6	CoC Tier 2 Level VI	ITE (Commercial)

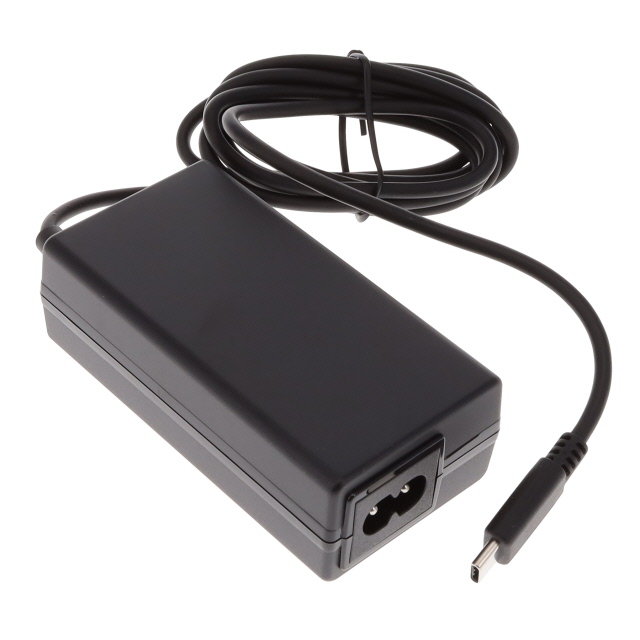

Phihong USA AA65W-59FKA-R	USB C Power Delivery (PD) USB C Receptacle	3 A 3.25 A	Cord (Sold Separately)	62368-1	Desktop (Class II)	65 W	CE cULus	5 V 9 V 15 V 20 V	40 °C	0 °C	1.5 m	59 in	1.89 in	29.5 mm	3.58 in	48 mm	91 mm	1.16 in	International	61.9 mW	264 VAC	90 VAC	IEC 320-C8	CoC Tier 2 Level VI	ITE (Commercial)
