TA7MSH Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

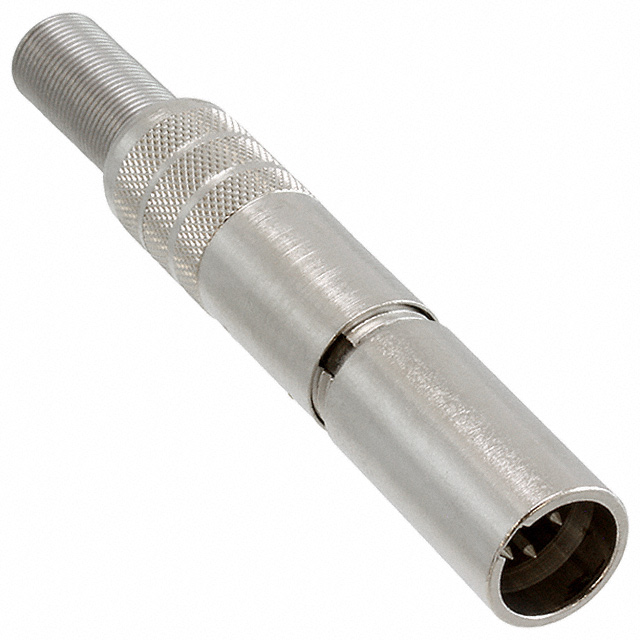

SHIELDED MINI XLR, 7 CONTACTS, MALE, SILVER PLATED CONTACTS, WITH FLEX RELIEF
| Part | Shell Size - Insert | Shielding | Applications | Orientation | Number of Positions | Mounting Type | Shell Finish | Insert Material | Fastening Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Backshell Material, Plating | Contact Material | Color | Shell Material | Material Flammability Rating | Connector Type | Current Rating (Amps) | Primary Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Mini XLR | Shielded | Audio Medical | Keyed | 7 | Free Hanging (In-Line) | Nickel | Thermoplastic | Latch Lock | Backshell Cable Clamp Ground Strain Relief | -55 C | 85 °C | Silver | Copper Alloy Nickel | Copper Alloy | Silver | Copper Alloy | UL94 V-0 | Receptacle Male Pins | 1.5 A | Metal | 125 VAC |
