1004-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

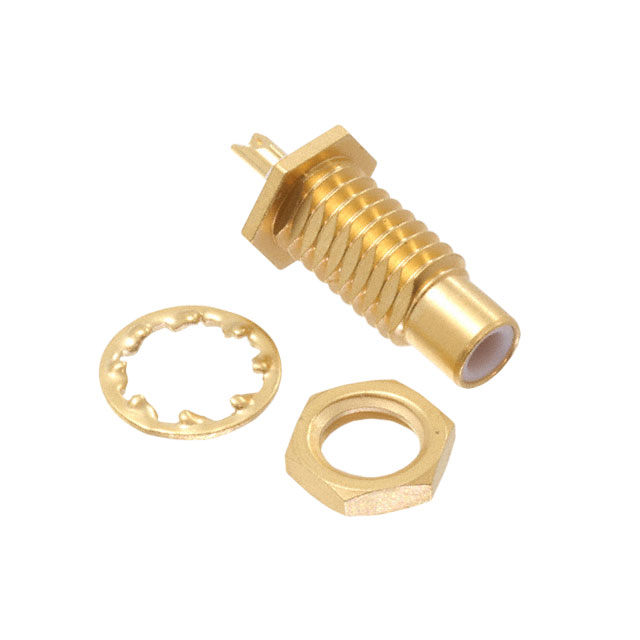

SMC M STR BHD SP
| Part | Insertion Loss | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Mating Cycles | Center Contact Plating | Dielectric Material | Body Finish | Housing Color | Number of Ports | Shield Termination | Fastening Type | Mounting Type | Frequency - Max [Max] | Contact Termination | Impedance | Mounting Feature | Center Contact Material | Connector Style | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 0.25 dB | Brass | -65 ░C | 165 °C | 1 Connector 1 Lockwasher 1 Nut | 500 | Gold | Polytetrafluoroethylene (PTFE) | Gold | Gold | 1 | Solder | Threaded | Panel Mount | 10 GHz | Solder Cup | 50 Ohms | Bulkhead - Front Side Nut | Brass | SMC | Jack Male Pin |
