HF539 Series

Catalog

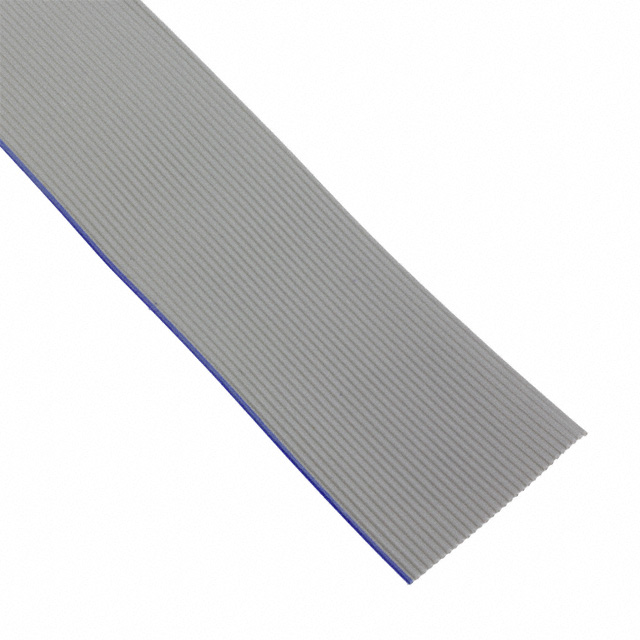

CBL RIBN 50COND 0.05 GRAY 50'

Part	First Conductor Mark	Insulation Resistance	Current Rating (Amps)	Conductor Material	Length	Length	Features	Cable Type	Number of Conductors	Conductor Strand	Conductor Strand [custom]	Jacket Color	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width [custom]	Ribbon Width [custom]	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	Shielding	Pitch	Pitch	Voltage	Jacket (Insulation) Material	Length	Number of Conductors [custom]	Number of Conductors [custom]
3M Electronic Specialty HF539/50	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable	50	40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	2.5 in	63.5 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)
3M Electronic Specialty HF539/16	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable	16	40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	0.8 in	20.32 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)
3M Electronic Specialty HF539/40	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable	40	40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	2 in	50.8 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)
3M Electronic Specialty HF539/30	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable	30	40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	1.5 in	38.1 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)	Enter Number of Feet in Order Quantity
3M Electronic Specialty HF539/26	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable	26	40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	1.3 in	33.02 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)
3M Electronic Specialty HF539/64	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable		40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	3.2 in	81.28 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)		64
3M Electronic Specialty HF539/10	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable		40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	0.5 in	12.7 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)	Enter Number of Feet in Order Quantity		10
3M Electronic Specialty HF539/14	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable	14	40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	0.7 in	17.78 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)
3M Electronic Specialty HF539/20	Blue	10 GOhm	1 A	Copper Tinned	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Zippable	Flat Cable	20	40 AWG	19	Gray	UL Style 21682	-40 C	105 ░C	1 in	25.4 mm	28 AWG	0.89 mm	0.035 in	50 ft	15.24 m	Unshielded	0.05 in	1.27 mm	300 VDC	Polyolefin (PO)
