INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS PILOT LIGHT BA9'S INCANDESCENT YELLOW

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Lens Color	Type	Panel Cutout Shape	Termination Style	Lens Size [diameter]	Ratings	Lens Style	Ingress Protection	Mechanical Life	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Circuit	Mounting Type	Current [Max]	Current [Min]	Voltage [Min]	Voltage [Max]	Illumination Type, Color	Illumination Voltage (Nominal)	Reset Operation

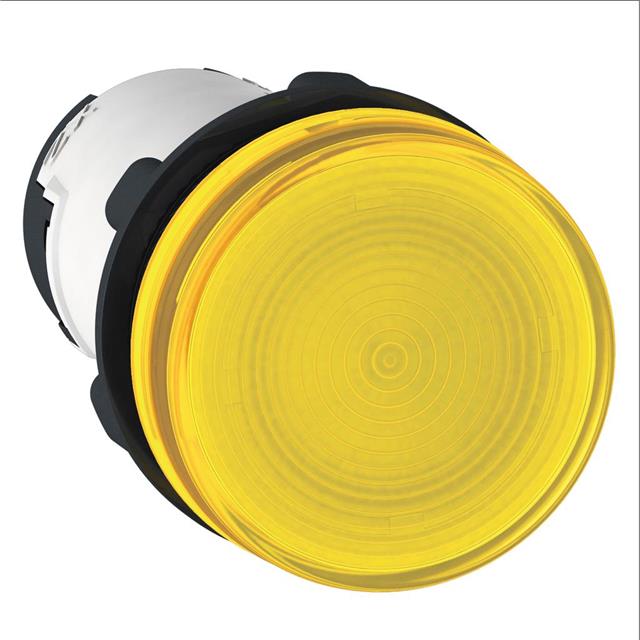

SCHNEIDER ELECTRIC XB7EV65P	22.5 mm	0.89 in	250 VDC	Yellow	Incandescent	Round	Quick Connect - 0.250" (6.3mm)	29 mm Dia	DC	Round with Flat Top	IP20 IP54 NEMA 12
SCHNEIDER ELECTRIC XB7NA4234					Standard		Screw Terminal				IP65 - Dust Tight Water Resistant	1000000 Cycles	1000000 Cycles	125 VDC	220 mA 600 mA	120 V	Button Flush Round	Off-On	22 mm	-25 °C	70 °C	Red	SPST-NC	Panel Mount Front
SCHNEIDER ELECTRIC XB7NA23					Standard		Screw Terminal				IP65 - Dust Tight Water Resistant			125 VDC	220 mA 600 mA	120 V	Button Flush Round	Off-On	22 mm	-25 °C	70 °C	Black	DPST-NO	Panel Mount Front
SCHNEIDER ELECTRIC XB7EV05GP	22.5 mm	0.89 in	120 V	Yellow	LED	Round	Screw Terminal	29 mm Dia	AC	Round with Convex Top	12 IP20 IP65 NEMA 4														21 mA	18 mA
SCHNEIDER ELECTRIC XB7EV03BP	22.5 mm	0.89 in	24 V	Green	LED	Round	Screw Terminal	29 mm Dia	AC/DC	Round with Convex Top	12 IP20 IP65 NEMA 4														27 mA	20 mA

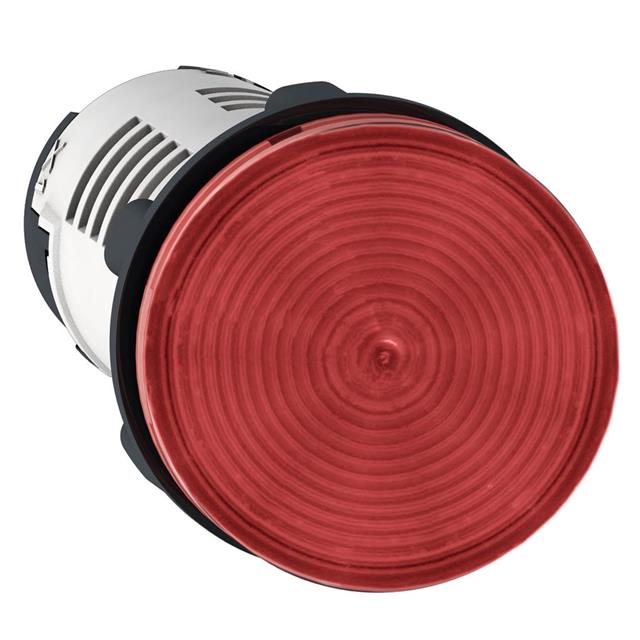

SCHNEIDER ELECTRIC XB7EV04MP3	22.5 mm	0.89 in		Red	LED	Round	Quick Connect - 0.250" (6.3mm)	29 mm Dia	AC	Round with Flat Top	12 IP20 IP65 NEMA 4														20 mA	16 mA	230 V	240 V
SCHNEIDER ELECTRIC XB7NW37B1					Illuminated Standard		Screw Terminal				IP65			125 VDC	220 mA 600 mA	120 V	Button Round	On-Off	22 mm	-25 °C	70 °C	Clear	SPST-NO	Panel Mount Front					Clear LED	24 V
SCHNEIDER ELECTRIC XB4BS8445							Screw Terminal				IP66 IP67 IP69 IP69K			125 VDC	6 A 550 mA	120 V		Off-On On-Off	22 mm	-40 C	70 °C		DPST-NO/NC	Panel Mount Front							Twist
SCHNEIDER ELECTRIC XB7EV03MP	22.5 mm	0.89 in		Green	LED	Round	Screw Terminal	29 mm Dia	AC	Round with Convex Top	12 IP20 IP65 NEMA 4														20 mA	16 mA	230 V	240 V
SCHNEIDER ELECTRIC XB7NA31					Standard		Screw Terminal				IP65 - Dust Tight Water Resistant	1000000 Cycles	1000000 Cycles				Button Flush Round	On-Off	22 mm	-25 °C	70 °C	Green	SPST-NO	Panel Mount Front
