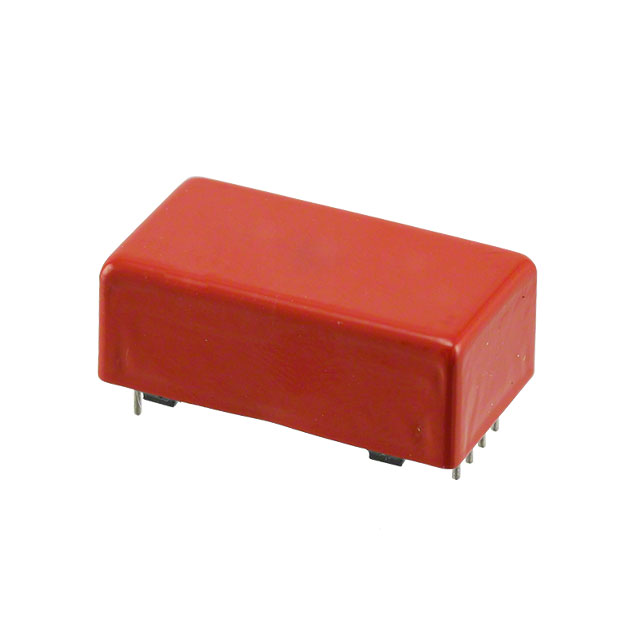

3650 Series

Catalog

RELAY REED 3PST 250MA 12V

Part	Coil Resistance	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switching Voltage	Must Operate Voltage	Coil Type	Coil Voltage	Mounting Type	Operate Time	Release Time	Coil Current	Contact Rating (Current)	Must Release Voltage
COTO TECHNOLOGY 3650-12-52	2 kOhms	3PST-NO (3 Form A)	85 °C	-20 ░C	PC Pin	150 VDC 150 VAC	9 VDC	Non Latching	12 VDC	Through Hole	750 µs	0.1 ms	6 mA	250 mA	1 VDC
COTO TECHNOLOGY 3650-05-82	350 Ohms	3PST-NO (3 Form A)	85 °C	-20 ░C	PC Pin	150 VDC 150 VAC	3.8 VDC	Non Latching	5 VDC	Through Hole	750 µs	0.1 ms	14.3 mA	250 mA	0.4 VDC
COTO TECHNOLOGY 3650-05-52	350 Ohms	3PST-NO (3 Form A)	85 °C	-20 ░C	PC Pin	150 VDC 150 VAC	3.8 VDC	Non Latching	5 VDC	Through Hole	750 µs	0.1 ms	14.3 mA	250 mA	0.4 VDC
COTO TECHNOLOGY 3650-05-92	350 Ohms	3PST-NO (3 Form A)	85 °C	-20 ░C	PC Pin	150 VDC 150 VAC	3.8 VDC	Non Latching	5 VDC	Through Hole	750 µs	0.1 ms	14.3 mA	250 mA	0.4 VDC
COTO TECHNOLOGY 3650-12-72	2 kOhms	3PST-NO (3 Form A)	85 °C	-20 ░C	PC Pin	150 VDC 150 VAC	9 VDC	Non Latching	12 VDC	Through Hole	750 µs	0.1 ms	6 mA	250 mA	1 VDC
