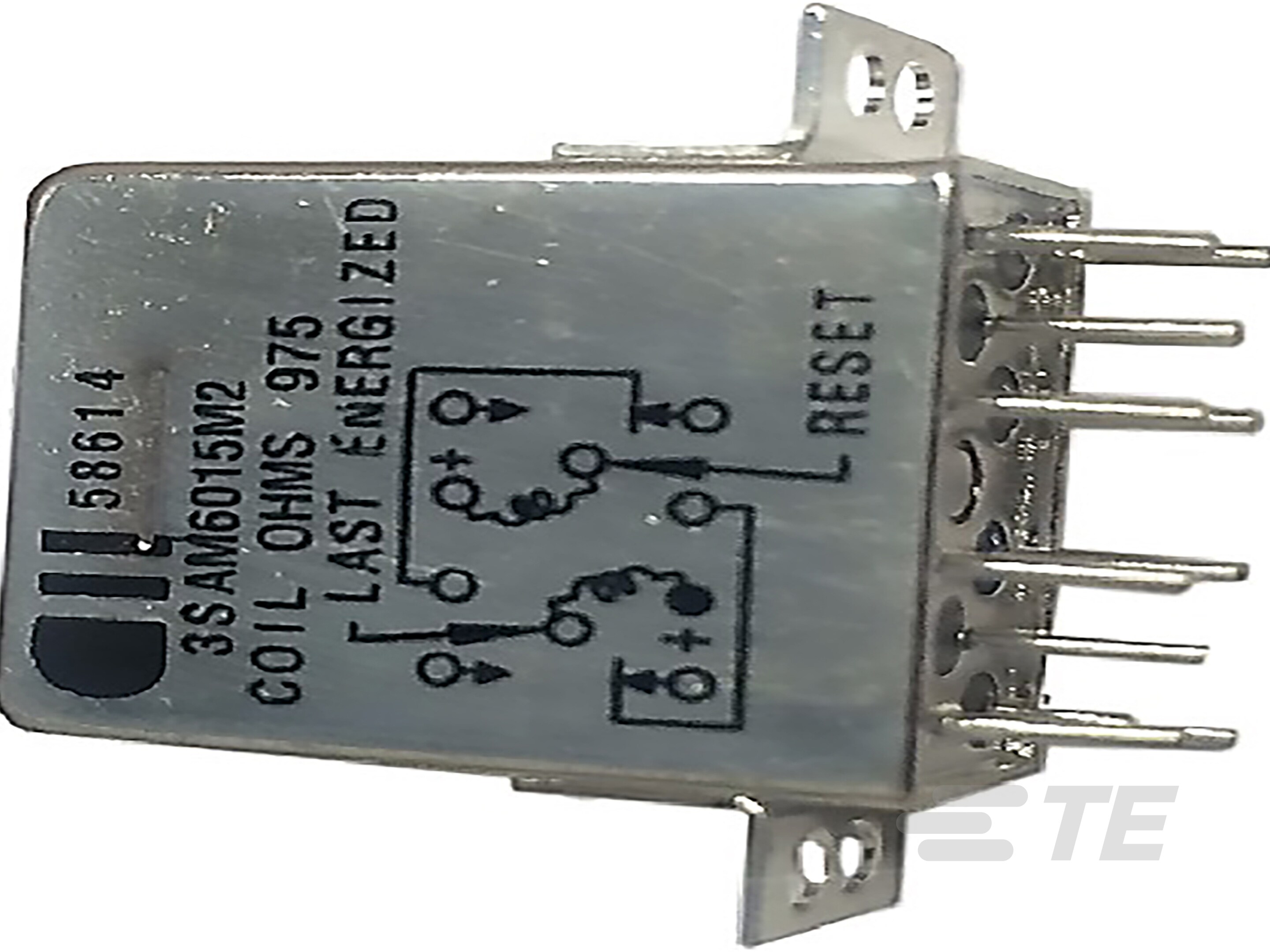

CII 3SAM Relay Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 2A 26.5V
| Part | Contact Form | Relay Type | Mounting Type | Coil Voltage | Termination Style | Release Time | Coil Current | Seal Rating | Coil Type | Operate Time | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Coil Resistance | Grade | Qualification | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | DPDT (2 Form C) | General Purpose | Chassis Mount | 26.5 VDC | PC Pin | 2 ms | 27.2 mA | Sealed - Hermetically | Dual Coil Latching | 4 ms | -65 ░C | 125 °C | 2 A | ||||
TE Connectivity AMP Connectors | DPDT (2 Form C) | General Purpose | Chassis Mount | 12 VDC | Solder Hook | 5 ms | 40 mA | 5 ms | -65 ░C | 125 °C | 2 A | 300 Ohms | Military | MIL-R-39016/32 | 5.8 VDC | ||
 TE Connectivity AMP Connectors | DPDT (2 Form C) | General Purpose | Chassis Mount | 32 VDC | Solder Hook | 2 ms | 21.3 mA | Sealed - Hermetically | Dual Coil Latching | 4 ms | -65 ░C | 125 °C | 2 A | 1.5 kOhms |
