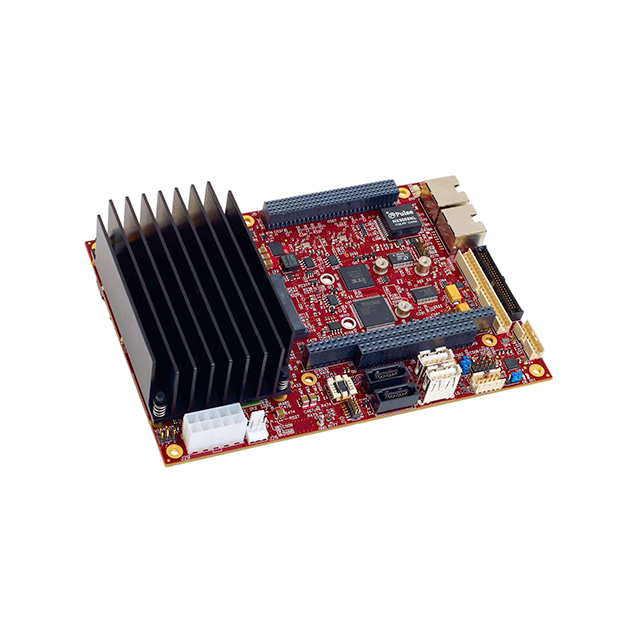

VL-EPIC Series
Manufacturer: VersaLogic Corporation
Beta
⌘K
SBC 1.83GHZ 1 CORE 4GB/0GB RAM
| Part | Expansion Site/Bus | Ethernet | Cooling Type | Storage Interface | Speed | Analog Input:Output [custom] | Analog Input:Output [custom] | Operating Temperature [Max] | Operating Temperature [Min] | RAM Capacity/Installed | Power (Watts) | USB | Digital I/O Lines | Number of Cores [custom] | Watchdog Timer | Form Factor | RS-232 (422, 485) | Video Outputs | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Ethernet | Core Processor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 VersaLogic Corporation | CANbus PC/104-Plus SATA | GbE (2) | Fan Fan + Heat Sink | CompactFlash eUSB mSATA SATA 2.0 (2) SATA2 (2) | 1.8 GHz 1.83 GHz | 8 | 4 | 85 °C | -40 C | 0 GB 4 GB | 10.1 W | USB 2.0 (6) | 16 | 1 | EPIC | 4 | LVDS VGA | 114.3 mm | 4.5 in | 6.5 in | 165.1 mm | 2 10 Mbps 100 Mbps 1000 Mbps | Intel Atom D425 |
