1415541 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

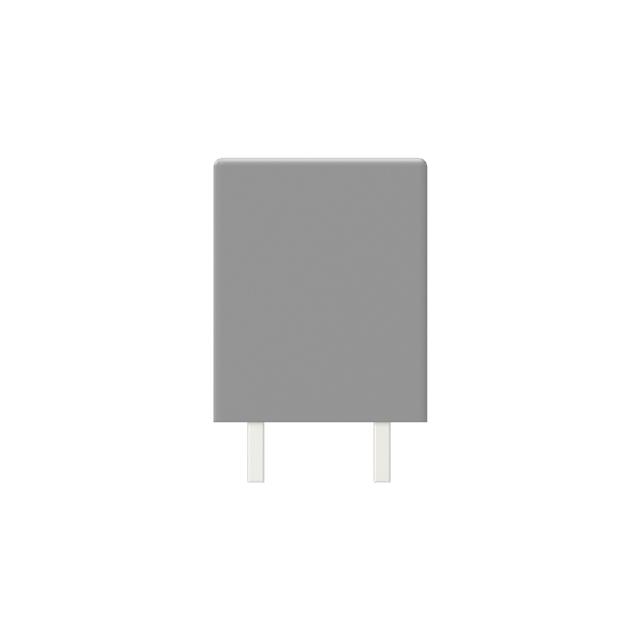

INDUSTRIAL RELAYS RTD1LA24
| Part | Coil Resistance | Contact Rating (Current) | Must Operate Voltage | Coil Voltage | Relay Type | Release Time | Coil Type | Coil Current | Seal Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Operate Time | Mounting Type | Switching Voltage [Max] | Coil Insulation | Contact Material | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1440 Ohms | 16 A | 16.8 VDC | 24 VDC | General Purpose | 10 ms | Non Latching | 16.7 mA | Sealed - Fully | 85 °C | -40 C | PC Pin | 10 ms | Through Hole | 400 VAC | Class F | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) |
