1617037 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog

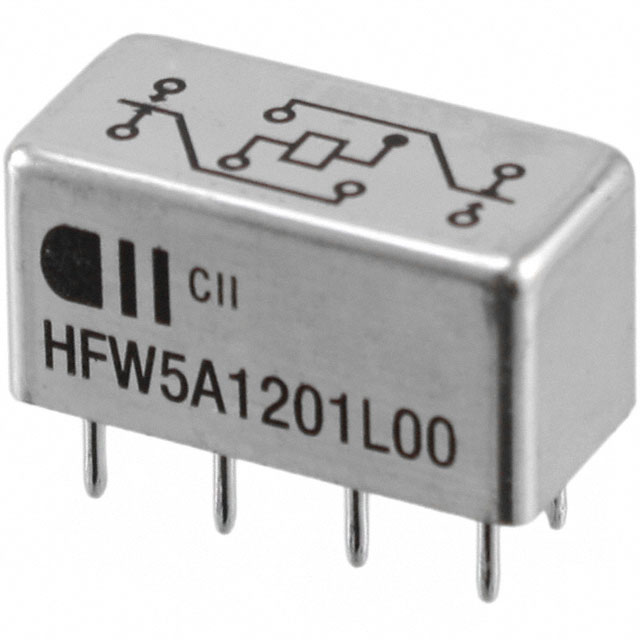

RELAY GEN PURPOSE DPDT 5A 26.5V
| Part | Coil Resistance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Coil Current | Coil Voltage | Contact Material | Operate Time | Coil Type | Relay Type | Must Operate Voltage | Seal Rating | Contact Form | Release Time | Termination Style | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 700 Ohms | Through Hole | -65 ░C | 125 °C | 5 A | 37.9 mA | 26.5 VDC | Silver Alloy | 4 ms | Non Latching | General Purpose | 13.5 VDC | Sealed - Hermetically | DPDT (2 Form C) | 4 ms | PC Pin | 1.5 VDC |
 TE Connectivity AMP Connectors | 160 Ohms | Through Hole | -65 ░C | 125 °C | 5 A | 0.075 A | 12 VDC | Silver Alloy | 4 ms | Non Latching | General Purpose | 6.4 VDC | Sealed - Hermetically | DPDT (2 Form C) | 4 ms | PC Pin | 0.7 VDC |
TE Connectivity AMP Connectors | 700 Ohms | Through Hole | -65 ░C | 125 °C | 5 A | 37.9 mA | 26.5 VDC | Silver Alloy | 4 ms | Non Latching | General Purpose | 13.5 VDC | Sealed - Hermetically | DPDT (2 Form C) | 4 ms | PC Pin | 1.5 VDC |
 TE Connectivity AMP Connectors | 700 Ohms | Through Hole | -65 ░C | 125 °C | 5 A | 37.9 mA | 26.5 VDC | Silver Alloy | 4 ms | Non Latching | General Purpose | 13.5 VDC | Sealed - Hermetically | DPDT (2 Form C) | 4 ms | PC Pin | 1.5 VDC |
TE Connectivity AMP Connectors | 27 Ohms | Through Hole | -65 ░C | 125 °C | 5 A | 185 mA | 5 VDC | Silver Alloy | 4 ms | Non Latching | General Purpose | 2.7 VDC | Sealed - Hermetically | DPDT (2 Form C) | 4 ms | PC Pin | 0.29 VDC |
TE Connectivity AMP Connectors | 27 Ohms | Through Hole | -65 ░C | 125 °C | 5 A | 185.2 mA | 5 VDC | Silver Alloy | 4 ms | Non Latching | General Purpose | 2.7 VDC | Sealed - Hermetically | DPDT (2 Form C) | 4 ms | PC Pin | 0.29 VDC |
