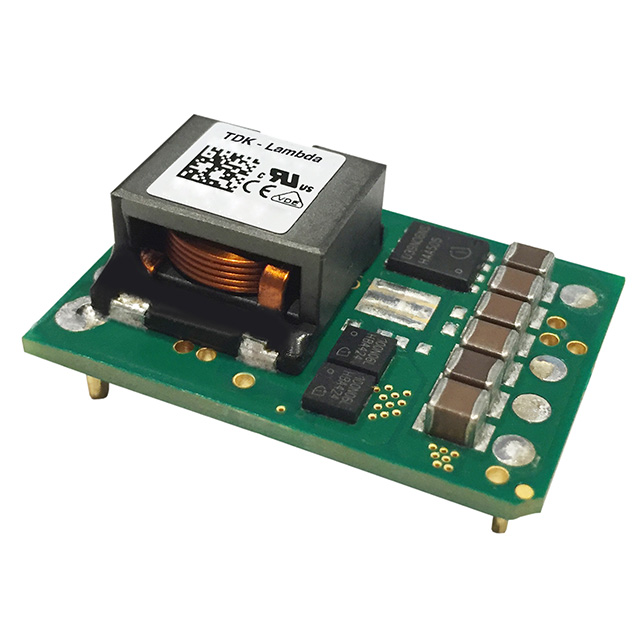

I6A4W020 Series

Catalog

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 250 W, 3.3 V, 15 V, 20 A

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Mounting Type	Features	Voltage - Input (Min) [Min]	Supplier Device Package	Control Features	Type	Package / Case	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
TDK Corporation I6A4W020A033V-003-R	20 A	125 °C	-40 C	CE	250 W	Through Hole	OCP Remote On/Off	9 V	Sixteenth Brick	Active Low Enable	Non-Isolated PoL Module	Sixteenth Brick	1	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm	3.3 V	15 V	53 V	ITE (Commercial)	97 %
TDK Corporation I6A4W020A033V-002-R	20 A	125 °C	-40 C	CE	250 W	Through Hole	OCP Remote On/Off	9 V	Sixteenth Brick	Active High Enable	Non-Isolated PoL Module	Sixteenth Brick	1	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm	3.3 V	15 V	53 V	ITE (Commercial)	97 %
TDK Corporation I6A4W020A033V-0S1-R	20 A	125 °C	-40 C	CE	250 W	Through Hole	OCP Remote On/Off	9 V	SIP	Active Low Enable	Non-Isolated PoL Module	20-SIP Module 18 Leads	1			33 mm			11.4 mm	3.3 V	15 V	53 V	ITE (Commercial)	97 %	0.45 in	24.8 mm	0.98 in	1.3 in
TDK Corporation I6A4W020A033V-0S3-R	20 A	125 °C	-40 C	CE	250 W	Through Hole	OCP Remote On/Off	9 V	SIP	Active Low Enable	Non-Isolated PoL Module	20-SIP Module 18 Leads	1			33 mm			11.4 mm	3.3 V	15 V	53 V	ITE (Commercial)	97 %	0.45 in	24.8 mm	0.98 in	1.3 in
TDK Corporation I6A4W020A033V-001-R	20 A	125 °C	-40 C	CE	250 W	Through Hole	OCP OTP Remote On/Off SCP	9 V	Sixteenth Brick	Active Low Enable	Non-Isolated PoL Module	Sixteenth Brick	1	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm	3.3 V	15 V	53 V	ITE (Commercial)	97 %
