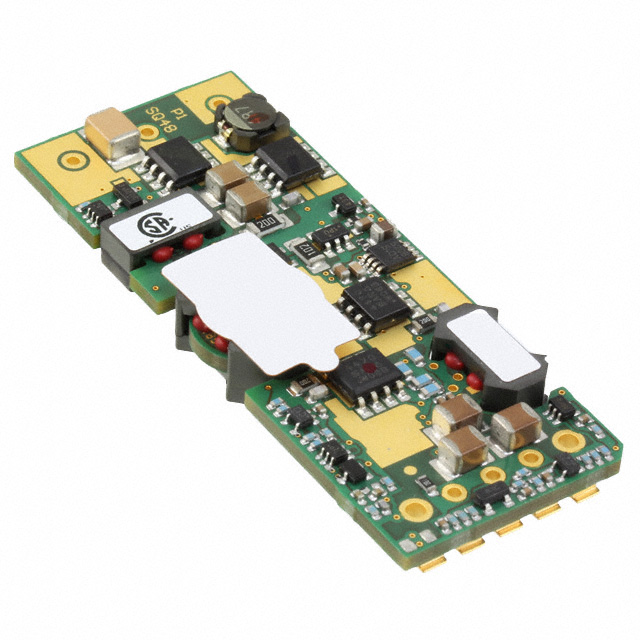

SQ48T04120 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC DC CONVERTER 12V 48W
| Part | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Features | Power (Watts) | Type | Voltage - Input (Min) [Min] | Efficiency | Number of Outputs | Control Features | Mounting Type | Applications | Voltage - Output 1 | Current - Output (Max) [Max] | Package / Case | Supplier Device Package | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 75 V | 85 °C | -40 C | 2000 V | 58.4 mm | 2.3 in | 0.26 in | 0.9 in | 6.6 mm | 22.9 mm | OCP OTP OVP Remote On/Off UVLO | 48 W | Isolated Module | 36 V | 87 % | 1 | Active Low Enable | Through Hole | ITE (Commercial) | 12 V | 4 A | 8-DIP Module 1/8 Brick | |||
Bel Fuse Inc. | 75 V | 85 °C | -40 °C | 2000 V | 58.4 mm | 2.3 in | 0.4 " | 0.9 in | OCP OTP OVP Remote On/Off SCP UVLO | 48 W | Isolated Module | 36 V | 87 % | 1 | Through Hole | ITE (Commercial) | 12 V | 4 A | 8-DIP Module 1/8 Brick | Eighth Brick | 22.9 mm | 10.2 mm | |||
 Bel Fuse Inc. | 75 V | 85 °C | -40 C | 2000 V | 58.4 mm | 2.3 in | 0.26 in | 0.9 in | 6.6 mm | 22.9 mm | OCP OTP OVP Remote On/Off UVLO | 48 W | Isolated Module | 36 V | 87 % | 1 | Active Low Enable | Through Hole | ITE (Commercial) | 12 V | 4 A | 8-DIP Module 1/8 Brick |
