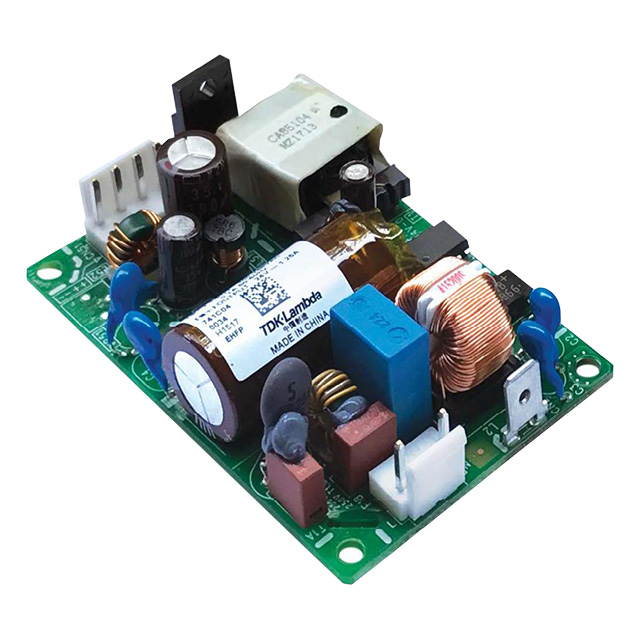

CUS30M Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, HOUSEHOLD & MEDICAL, 1 OUTPUT, 30 W, 85V AC TO 265V AC

Part	Features	Efficiency	Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Mounting Type	Applications	Current - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Line Regulation	Load Regulation	Current - Output (Max) [Max]	Package / Case	Voltage - Output 1 [custom]
TDK Corporation CUS30M-24/M	Adjustable Output Universal Input	90 %	Open Frame	4000 V	70 °C	-20 °C	CE	1	265 VAC	85 VAC	0.85 in 21.7 mm	50.8 mm	3 in 76.2 mm	24 V	Chassis Mount	Household Appliances ITE (Commercial) Medical	1.25 A	30 Watts
TDK Corporation CUS30M-12/A	Adjustable Output Universal Input	88 %	Enclosed	4000 V	70 °C	-20 °C	CE	1	265 VAC	85 VAC	35.5 mm	64 mm	88.4 mm	12 V	Chassis Mount	Household Appliances ITE (Commercial) Medical	2.5 A	30 Watts	3.48 "	2.52 in	1.4 "
TDK Corporation CUS30M-24/SF	Adjustable Output Universal Input	90 %	Open Frame	4000 V	70 °C	-20 °C	CE	1	265 VAC	85 VAC	0.85 in 21.7 mm	50.8 mm	3 in 76.2 mm	24 V	Chassis Mount	Household Appliances ITE (Commercial) Medical	1.25 A	30 Watts
TDK Corporation CUS30M-18/SF	Adjustable Output Universal Input	88 %	Open Frame	4000 V	70 °C	-20 °C	CE	1	265 VAC	85 VAC	0.85 in 21.7 mm	50.8 mm	3 in 76.2 mm	18 V	Chassis Mount	Household Appliances ITE (Commercial) Medical	1.7 A	31 W
TDK Corporation CUS30M-15/SF	Adjustable Output Universal Input	88 %	Open Frame	4000 V	70 °C	-20 °C	CE	1	265 VAC	85 VAC	0.85 in 21.7 mm	50.8 mm	3 in 76.2 mm	15 V	Chassis Mount	Household Appliances ITE (Commercial) Medical	2 A	30 Watts
TDK Corporation CUS30M-15/P	Adjustable Output Universal Input	88 %	Open Frame		70 °C	-20 °C	CE	1	265 VAC	85 VAC	0.85 in 21.7 mm	50.8 mm	3 in 76.2 mm	15 V	Through Hole	Household Appliances ITE (Commercial) Medical		30 Watts				60 mV	120 mV	2 A	6-DIP Module
TDK Corporation CUS30M-48/P	Adjustable Output Universal Input	90 %	Open Frame		70 °C	-20 °C	CE	1	265 VAC	85 VAC	0.85 in 21.7 mm	50.8 mm	3 in 76.2 mm	48 V	Through Hole	Household Appliances ITE (Commercial) Medical		30 Watts				192 mV	384 mV	630 mA	6-DIP Module
TDK Corporation CUS30M-36/P	Adjustable Output Universal Input	90 %	Open Frame		70 °C	-20 °C	CE	1	265 VAC	85 VAC	0.85 in 21.7 mm	50.8 mm	3 in 76.2 mm		Through Hole	Household Appliances ITE (Commercial) Medical		30 Watts				144 mV	288 mV	840 mA	6-DIP Module	36 V
TDK Corporation CUS30M-15	PFC Remote Sense	88 %	Open Frame	4000 V	70 °C	-20 °C	CE	1	265 VAC	85 VAC	24.1 mm	50.8 mm	76.2 mm	15 V	Chassis Mount	ITE (Commercial) Medical	2 A	30 Watts	3 "	2 in	24.13 mm
TDK Corporation CUS30M-48/CO	Adjustable Output Universal Input	90 %	Open Frame Conformal Coated	4000 V	70 °C	-20 °C	CE	1	265 VAC	85 VAC	0.85 in 21.7 mm	50.8 mm	3 in 76.2 mm	48 V	Chassis Mount	Household Appliances ITE (Commercial) Medical	630 mA	30 Watts
