SMAJ-AT Series

Manufacturer: YAGEO

Catalog

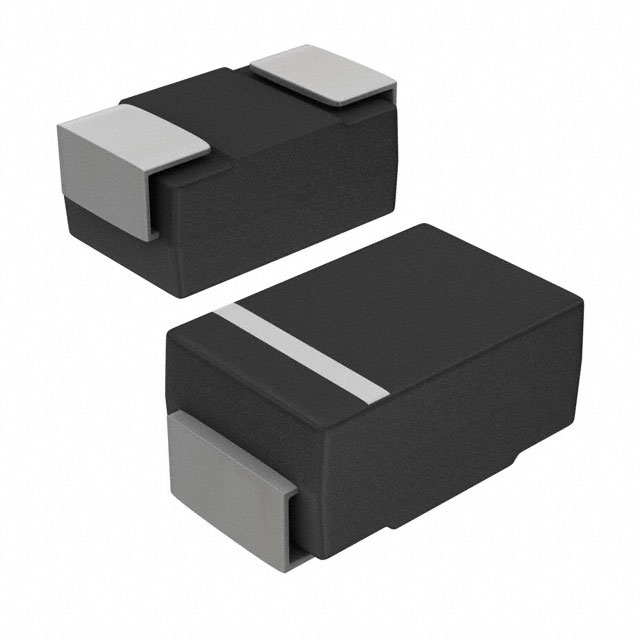

ESD PROTECTION DIODES / TVS DIODES SMAJ - A 160V

Part	Qualification	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Power - Peak Pulse	Unidirectional Channels [custom]	Mounting Type	Voltage - Reverse Standoff (Typ)	Grade	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Type	Bidirectional Channels [custom]
YAGEO SMAJ160A-AT/TR7	AEC-Q101	178 V	1.5 A	DO-214AC (SMA)	400 W	1	Surface Mount	160 V	Automotive	DO-214AC SMA	150 °C	-55 °C	259 V	Zener
YAGEO SMAJ75A-AT/TR13	AEC-Q101	83.3 V	3.3 A	DO-214AC (SMA)	400 W	1	Surface Mount	75 V	Automotive	DO-214AC SMA	150 °C	-55 °C	121 V	Zener
YAGEO SMAJ22A-AT/TR13	AEC-Q101	24.4 V	11.3 A	DO-214AC (SMA)	400 W	1	Surface Mount	22 V	Automotive	DO-214AC SMA	150 °C	-55 °C	35.5 V	Zener
YAGEO SMAJ78CA-AT/TR7	AEC-Q101	86.7 V	3.2 A	DO-214AC (SMA)	400 W		Surface Mount	78 V	Automotive	DO-214AC SMA	150 °C	-55 °C	126 V	Zener	1
YAGEO SMAJ13CA-AT/TR13	AEC-Q101	14.4 V	18.6 A	DO-214AC (SMA)	400 W		Surface Mount	13 V	Automotive	DO-214AC SMA	150 °C	-55 °C	21.5 V	Zener	1
YAGEO SMAJ11CA-AT/TR13	AEC-Q101	12.2 V	22 A	DO-214AC (SMA)	400 W		Surface Mount	11 V	Automotive	DO-214AC SMA	150 °C	-55 °C	18.2 V	Zener	1
YAGEO SMAJ36CA-AT/TR13	AEC-Q101	40 V	6.9 A	DO-214AC (SMA)	400 W		Surface Mount	36 V	Automotive	DO-214AC SMA	150 °C	-55 °C	58.1 V	Zener	1
YAGEO SMAJ90CA-AT/TR13	AEC-Q101	100 V	2.7 A	DO-214AC (SMA)	400 W		Surface Mount	90 V	Automotive	DO-214AC SMA	150 °C	-55 °C	146 V	Zener	1
YAGEO SMAJ18CA-AT/TR7	AEC-Q101	20 V	13.7 A	DO-214AC (SMA)	400 W		Surface Mount	18 V	Automotive	DO-214AC SMA	150 °C	-55 °C	29.2 V	Zener	1
YAGEO SMAJ250A-AT/TR13	AEC-Q101	279 V		DO-214AC (SMA)	400 W	1	Surface Mount	250 V	Automotive	DO-214AC SMA	150 °C	-55 °C	405 V	Zener
