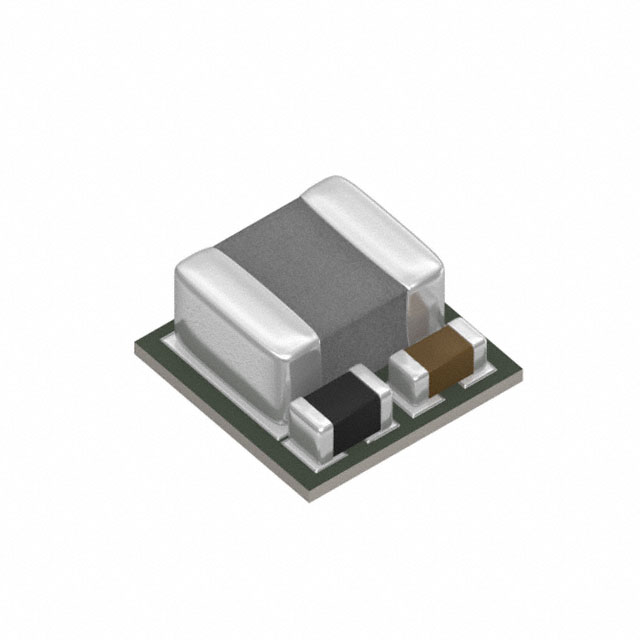

FS1406 Series
Manufacturer: TDK Corporation
Beta
⌘K
TDK UPOL™ EMBEDDED DC-DC CONVERTER, POWER MODULE, 0.9V OUTPUT VOLTAGE, 6A OUTPUT CURRENT, COMMERCIAL, 3.3MM X 3.3MM
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Applications | Current - Output (Max) [Max] | Type | Voltage - Output 1 | Number of Outputs | Package / Case | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 0.06 " | 0.13 " | 0.13 in | 3.3 mm | 1.5 mm | 3.3 mm | 16 V | ITE (Commercial) | 6 A | Non-Isolated PoL Module Digital | 0.9 V | 1 | 17-SMD Module | Surface Mount | 4.5 V | 125 °C | -40 C | |
TDK Corporation | 0.06 " | 0.13 " | 0.13 in | 3.3 mm | 1.5 mm | 3.3 mm | 16 V | ITE (Commercial) | 6 A | Non-Isolated PoL Module Digital | 0.7 V | 1 | 17-SMD Module | Surface Mount | 4.5 V | 125 °C | -40 C | |
 TDK Corporation | 0.06 " | 0.13 " | 0.13 in | 3.3 mm | 1.5 mm | 3.3 mm | 16 V | ITE (Commercial) | 6 A | Non-Isolated PoL Module Digital | 1.8 V | 1 | 17-SMD Module | Surface Mount | 4.5 V | 125 °C | -40 C | Adjustable Output |
