SIL09E Series

Catalog

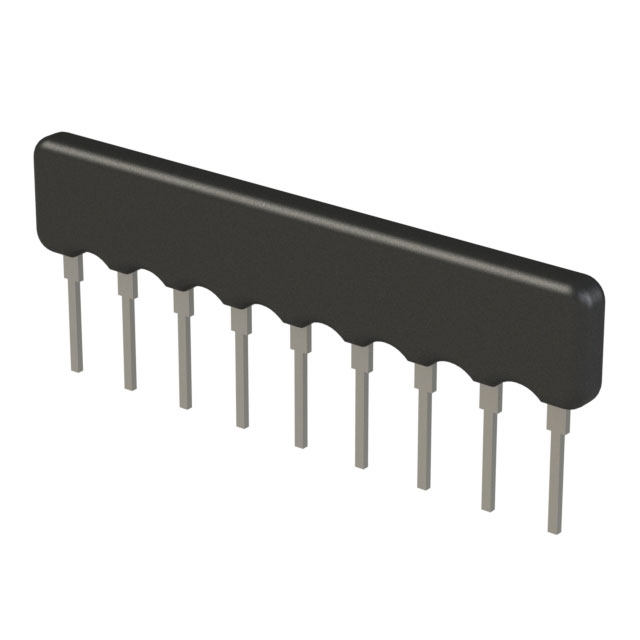

RES ARRAY 8 RES 22K OHM 9SIP

Part	Mounting Type	Resistance (Ohms)	Number of Resistors	Temperature Coefficient	Number of Pins	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Package / Case	Power Per Element	Circuit Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Resistance (Ohms) [custom]	Resistance (Ohms)
TE Connectivity AMP Connectors SIL09E223J	Through Hole	22k	8	200 ppm/°C	9	5.08 mm	0.2 in	5 %	9-SIP	200 mW	Bussed	0.9 in	2.5 mm	22.86 mm	0.098 in	-55 C	125 °C
TE Connectivity AMP Connectors SIL09E472J	Through Hole		8	200 ppm/°C	9	5.08 mm	0.2 in	5 %	9-SIP	200 mW	Bussed	0.9 in	2.5 mm	22.86 mm	0.098 in	-55 C	125 °C	4.7 kOhms
TE Connectivity AMP Connectors SIL09E102J	Through Hole	1k	8	200 ppm/°C	9	5.08 mm	0.2 in	5 %	9-SIP	200 mW	Bussed	0.9 in	2.5 mm	22.86 mm	0.098 in	-55 C	125 °C
TE Connectivity AMP Connectors SIL09E104J	Through Hole	100k	8	200 ppm/°C	9	5.08 mm	0.2 in	5 %	9-SIP	200 mW	Bussed	0.9 in	2.5 mm	22.86 mm	0.098 in	-55 C	125 °C
TE Connectivity AMP Connectors SIL09E822J	Through Hole		8	200 ppm/°C	9	5.08 mm	0.2 in	5 %	9-SIP	200 mW	Bussed	0.9 in	2.5 mm	22.86 mm	0.098 in	-55 C	125 °C		8.2 kOhms
TE Connectivity AMP Connectors SIL09E122J	Through Hole		8	200 ppm/°C	9	5.08 mm	0.2 in	5 %	9-SIP	200 mW	Bussed	0.9 in	2.5 mm	22.86 mm	0.098 in	-55 C	125 °C		1.2 kOhms
